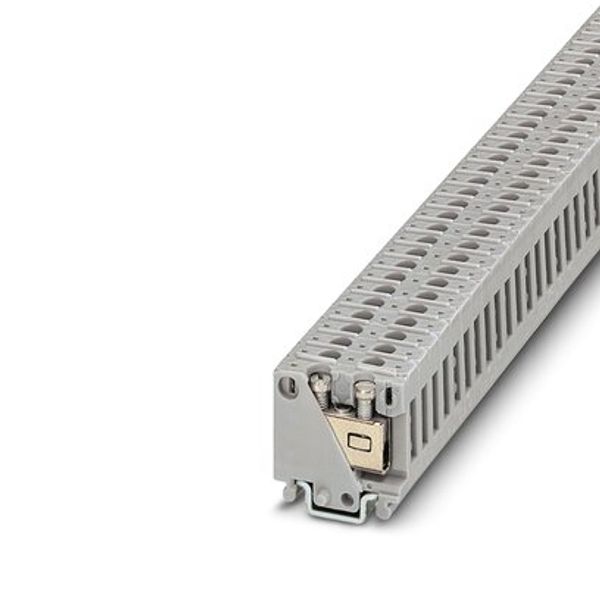

MBK - Mini feed-through terminal block
Order only
Price (excl. VAT):
1,26 €
per pcs
EAN: 4017918020194
MPN: 1401019
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MBK - Mini feed-through terminal block |
| Brand | Phoenix Contact |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Mounting method | DIN rail (top hat rail) 15 mm |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section solid-core | 0.2-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-1 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-1.5 mm² |
| Connectable conductor cross section multi-wired | 0.2-0.75 mm² |
| Rated current In | 17.5 A |
Packing details
| Packing level 1 | 4017918020194, 4017918020194 |
Other Technical data
| Colour | Grey |
| Width | 5 mm |
| Height | 22 mm |
| Depth | 21.6 mm |
| Operating temperature | -60-105 °C |
| Inflammability class of insulation material according to with UL94 | V2 |
| Closing plate required | No |
| Internally connected stages | No |
| Material insulation body | Other |
Description
Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Screw connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.2 mm² - 2.5 mm², mounting type: NS 15, color: gray
