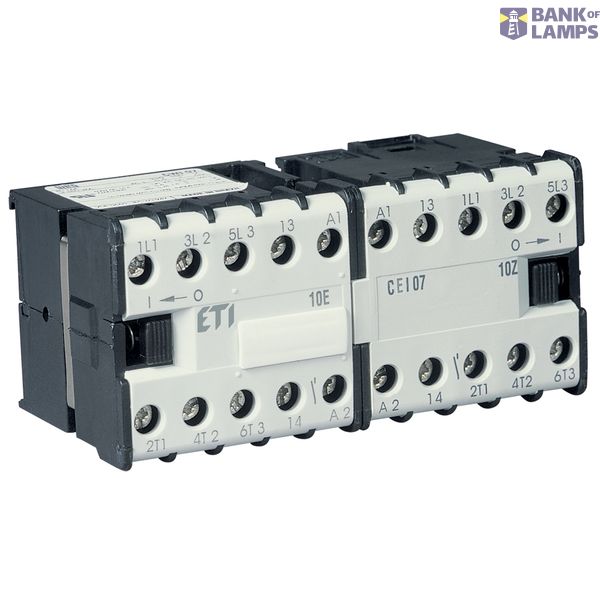

Min. mot. contactor - revers., CEI07.01-110V-50Hz image 2

Min. mot. contactor - revers., CEI07.01-110V-50Hz

In vendor's stock Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Min. mot. contactor - revers., CEI07.01-110V-50Hz
Brand	ETI
ETIM	EC000066
Rated operation power at AC-3, 400 V	1,5 kW
Number of normally open contacts as main contact	3
Rated operation current Ie at AC-3, 400 V	3.5 A
Rated control supply voltage at AC 50 Hz	110 V
Type of electrical connection of main circuit	Frame clamp
Voltage type for actuating	AC

Packing details

Packing level 1

0000004641612, 0000004641612

Other Technical data

Modular version	No
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	1
Rated operation current Ie at AC-1, 400 V	16 A

Description

Min. mot. contactor - revers., CEI07.01-110V-50Hz, Function Miniature contactor-reversing starter 1NC integrated, Rated operation current Ie at AC1 (A) 16, Rated operation current Ie at AC3, 400V (A) 3,5, Rated operation power at AC3 (kW) 1,5, No. of aux NC contacts 1, Catalogue Group Miniature and auxiliary contactor CE, CAE, CE17
