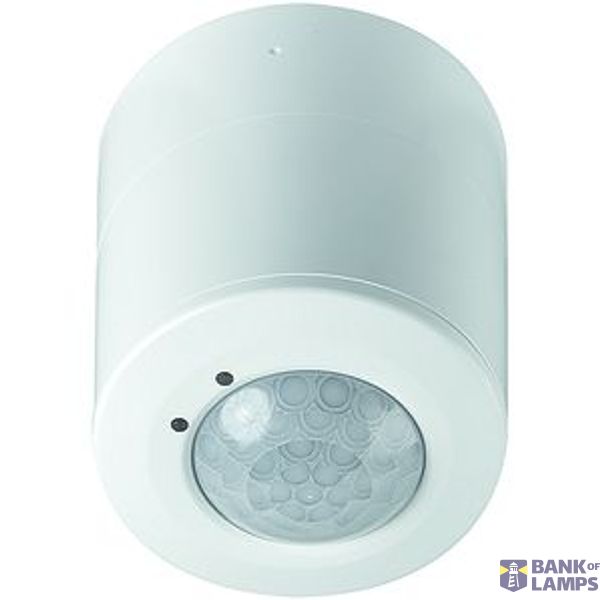

Mid-Bay dimsensoren – opbouwdigitaal DALI of DSI
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Mid-Bay dimsensoren – opbouwdigitaal DALI of DSI |
| Brand | Peha by Honeywell |
| Country of origin* | GB |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5019 00 |
| ETIM | EC000133 |
| Mounting method | Surface mounted (plaster) |
| Colour | White |
| Model | Presence detector |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 12 m |
| Max. transmission range sideways | 12 m |
| Degree of protection (IP) | IP40 |
| Min. switch-on time | 5 s |
| Max. duty cycle | 6000 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 2.5 m |
Packing details
| Packing level 1 | 4010105992250 |
Other Technical data
| Halogen free | Yes |
| Surface protection | Untreated |
| Creep-under protection | No |
| Voltage type | AC |
| Staircase monitoring | No |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Diameter detection range on floor | 24 m |
| Remote operation | Yes |
| HVAC-control | No |
| Constant light control | Yes |
| Substation input | No |
| With signal unit | No |
| Control current | 60 mA |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | No |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0-360 ° |
Downloads
Description
LightSpot HD Mid-Bay dimsensoren – opbouwStand alone sensor, Mid-Bay versie,voedingsspanning 230 V +/- 15 %, 50/60 Hz,dimmen digitaal DALI of DSITechnische gegevens:Technologie: PIRDetectiebereik: 360°Consumptie: Belasting AAN 500 mW, Belasting UIT 150 mW;D LS3000DMBSM Belasting AAN 150 mWSchakelvermogen: Schakelen: 10 A (maximaleinschakelstroom 80 A)Dimmen: 15 voorschakelapparatenDALI of DSIBedrijfstemperatuur: 0 °C–45 °COpslagtemperatuur: -20 °C–80 °CLuchtvochtigheid: 20 %–80 % niet-condenserendGewicht: 140 gMateriaal: Vlamvertragende PC/ABSIP bescherming: IP 4XConformiteitsverklaring: EMC: 2004/108/ECLVD: 2006/95/ECRoHS: 2011/65/EU
