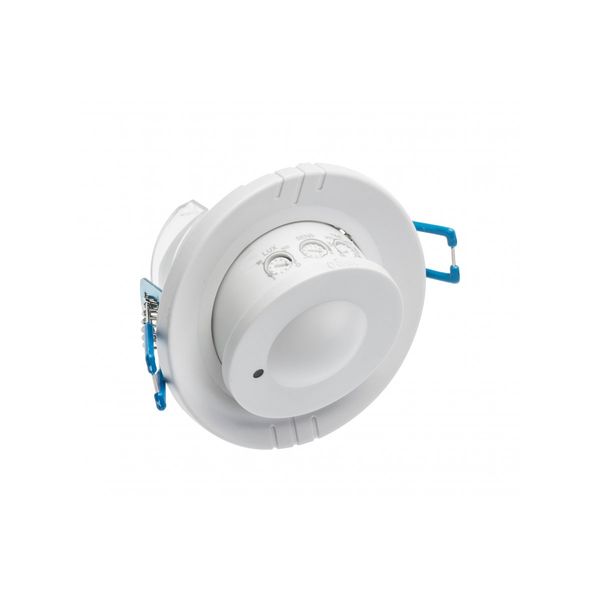

Microwave motion sensor CM-15, max. 1200 W, detection angle 360°, range 8 m, IP20, white

Order only

Price (excl. VAT):

8,64 €

This price is valid until 30.06.26

EAN: 5902801002519

MPN: AE-CM1500-00

Package: 1

Box: 50

Pallet: 1600

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Microwave motion sensor CM-15, max. 1200 W, detection angle 360°, range 8 m, IP20, white
Brand	GTV Lighting
Categories	Motion & Presence Sensors
Colour	White
Nominal voltage	220-240
Degree of protection (IP)	IP20

Packing details

Packing level 1	5902801002519
Packing level 2	5902801002526
Packing level 3	2012801176530
Packing level 4	2012801176547

Downloads

Instructions for use Declaration DOC CE (Declaration of conformity CE)

Description

The CM-15 motion sensor is a modern device that uses high-frequency electromagnetic waves (5.8GHz). Thanks to its easy installation in a suspended ceiling (mounting hole 67-72 mm), this sensor is the ideal solution for different spaces.

The maximum detection range of the sensor is 8 meters, which allows for effective monitoring of the environment. The CM-15 automatically adjusts its operation depending on light conditions, offering "sun" settings for operation regardless of the time of day and "3" for activation at light levels below 3 LUX.

The sensor also allows you to adjust the hold-up time when motion is detected, with options ranging from 10 seconds to 12 minutes (10 s, 30 s, 90 s, 3 min, 6 min, 15 min), allowing for full customization to suit your individual needs.

5-year warranty;
Stepless adjustment of detection sensitivity;
Easy installation in a suspended ceiling with a recommended installation height of 1.5 to 3.5 meters, allows optimal adaptation to different spaces;
Selectable hold time from 10 seconds to 12 minutes, allowing you to tailor the operation to your individual needs.
