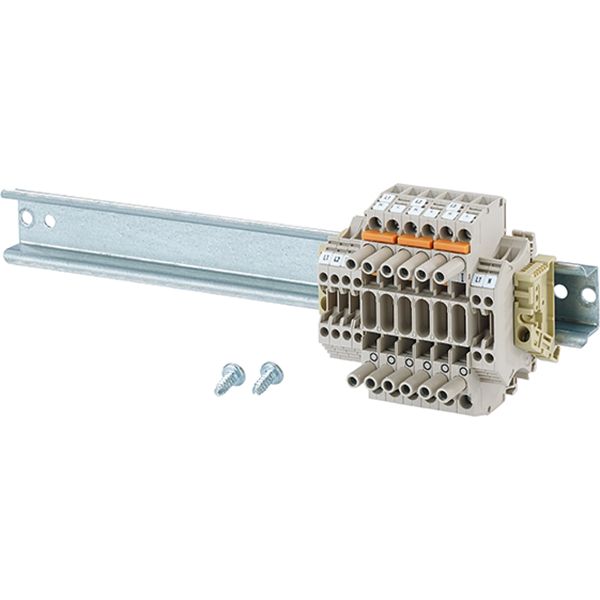

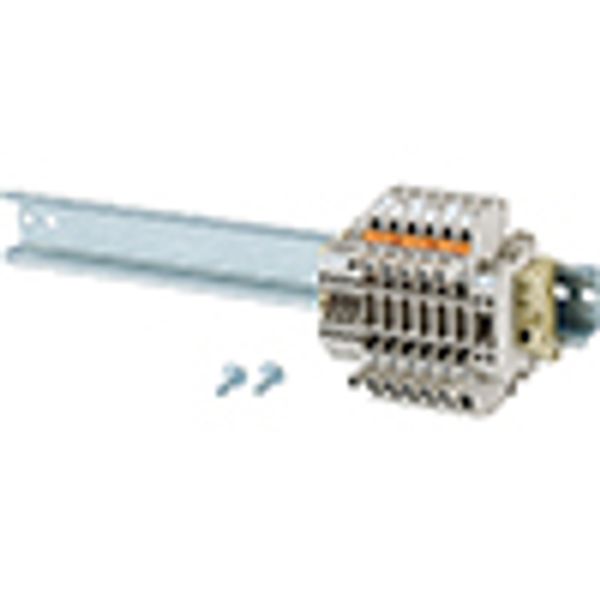

Mi Clamp Set 4x Mounting clamp +6x Measuring clamp on DIN rail Length 284mm (Mi EM 02)
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
142,72 €
EAN: 4012591127314
MPN: 20001386
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Mi Clamp Set 4x Mounting clamp +6x Measuring clamp on DIN rail Length 284mm (Mi EM 02) |
| Brand | HENSEL |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin | DE |
| Harmonized System Code | 8537 1098 00 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Internally connected stages | No |
| Connectable conductor cross section solid-core | 0.5-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-4 mm² |
| Connectable conductor cross section multi-wired | 1.5-4 mm² |
| Rated current In | 24 A |
Packing details
| Packing level 1 | 4012591127314, 4012591127314 |
Other Technical data
| Colour | Beige |
| Operating temperature | -5-35 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of slitting | Sliding |
| Type of cross disconnection | None |
| With integrated test socket | Yes |
| Material insulation body | Thermoplastic |
Downloads
Description
Geïsoleerde laagspanningsschakelapparatuur-combinatie in kastbouwvorm conform IEC 61439-2 voor wandopbouw. Kasten moeten geschikt zijn voor buitenopstelling; er moet rekening worden gehouden met de invloed van de weersomstandigheden op de bedrijfsmiddelen. Kastonderdelen en -deksel van slagvast polycarbonaat, halogeen- en siliconenvrij, kleur RAL 7035, transparant deksel met snelsluitingen voor gereedschapsbediening. Brandgedrag conform DIN VDE 0471 Deel 2 – Gloeidraadtest 960 °C. Maximale waterabsorptie 10 mg conform DIN 53473. Beveiligingsmaatregel: dubbelgeïsoleerd (beschermingsklasse II). Merk: HENSEL Mi-verdelers. Uitbreidingsmodule meetscheidingsklemmen Mi EM 02, meetscheidingsklemmen 6 mm², rijgklemmen 2,5 mm²
