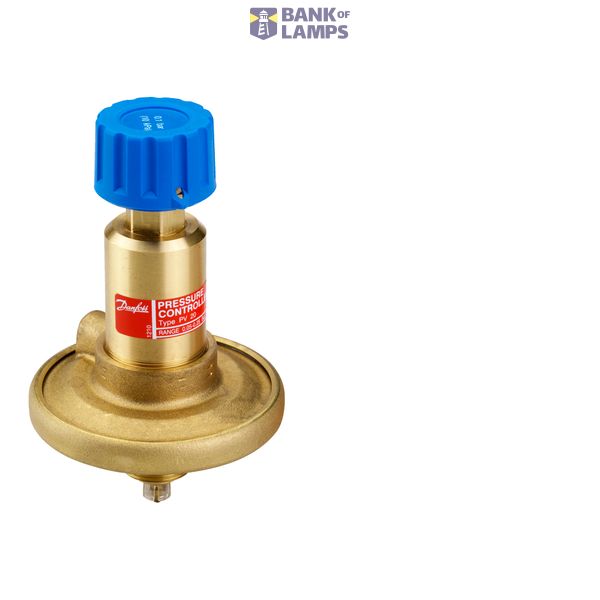

Membraam set USV-PV DN 32-40
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Membraam set USV-PV DN 32-40 |
| Brand | Danfoss |
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8481 9000 00 |
| ETIM | EC011408 |
| Surface protection | Other |
| Control signal | Other |
| Material quality | Dezincification resistant brass (DZR) |
| Degree of protection (IP) | IP42 |
| Article compression class | PN 40 |
| Flange compression class | Other |
| Zero-pressure return flow | None |
| Position reporting system | None |
| Connections | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Transmission | With cogwheels |
| Max. pressure difference in opened position | 6 bar |
| Leakage loss of Kvs value | 0 % |
| Control ratio (Svo) | 0 % |
| Characteristic curve | Linear |
| Closing pressure | 16 bar |
| Adjustable position feedback signal | No |
Packing details
| Packing level 1 | 5702420082622 |
Other Technical data
| Width | 101 mm |
| Height | 92 mm |
| Depth | 84 mm |
| Suitable for manual operation | No |
| Explosion-proof | No |
| Max. medium temperature (continuous) | 130 °C |
| Min. medium temperature (continuous) | -20 °C |
| Outer pipe diameter all connections | 0 mm |
| Length of connection 1 | 76 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Operating time | 30 s |
| With coupling connection 1 | No |
| With coupling connection 2 | No |
| Housing material | Brass |
| Kvs value | 41 |
| With end contacts | No |
| Max. electric power input | 3.5 VA |
| Nominal diameter | DN 20 |
| Adjustable operating range | No |
| Supply voltage | 24 V AC |
| Auxiliary contacts | No |
