MEGA TOWER F, 10 W, 880 lm, 830, anthracite, on/off Bollards, D 115 H

Order only

Price (excl. VAT):

624,52 €

This price is valid until 24.12.25

EAN: 4051859764113

MPN: 672550.0031

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	MEGA TOWER F, 10 W, 880 lm, 830, anthracite, on/off Bollards, D 115 H
Brand	RZB
Categories	Emergency luminaires
Country of origin	DE
Harmonized System Code	9405 4239 00
Height/depth	1000 mm
Lamp type	LED not exchangeable
Impact strength	IK05
Nominal voltage	220-240 V
Degree of protection (IP)	IP65
Colour temperature	3000 K
Max. system power	10 W
Rated luminous flux according to IEC 62722-2-1	880 lm

Packing details

Packing level 1

4051859764113, 4051859764113

Other Technical data

Protection class	I
Outer diameter	115 mm
Function	Escape route lighting
Lamp holder	None
Conductor cross section	2.5 mm²
Connection type	Unpreassembled connection cable
Colour housing	Anthracite
Voltage type	AC/DC
Power supply system	Central (central battery)
Type of control gear	LED operating device current-controlled
With remote control	No
Suitable for labelling type	Other
Number of poles	3
Housing material	Aluminium
Material cover	Glass transparent
Battery quality	Other
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Suitable for number of lamps	1
With remote switch connection	No
Monitoring equipment	Other
Nominal current	42-45
Constant light output (CLO)	No
With pictogram	No
Type of wiring	Suitable for through wiring
Luminous flux in standby mode	880 lm
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC62722-2-1	-10-35 °C
Light distributor	Other
Max. number of luminaires per miniature circuit breaker C16	45
Max. number of luminaires per miniature circuit breaker B16	27
Exchangeable control gear	Yes
Power factor	0.54

Downloads

Product data sheet Declaration DOC CE (Declaration of conformity CE) Others Mounting instruction

Description

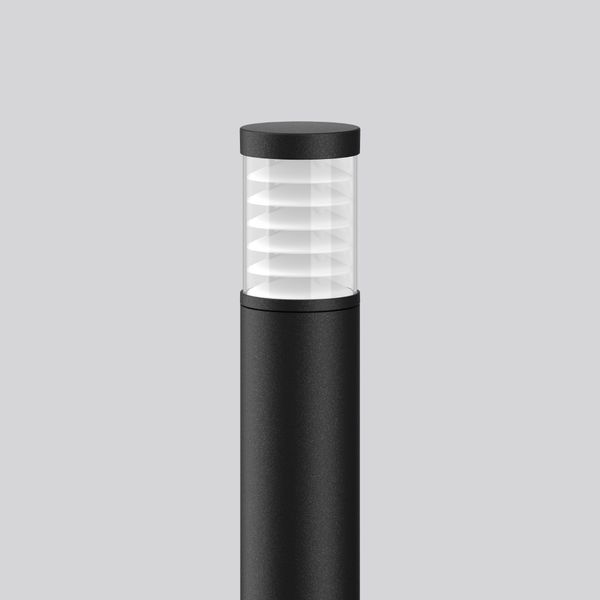

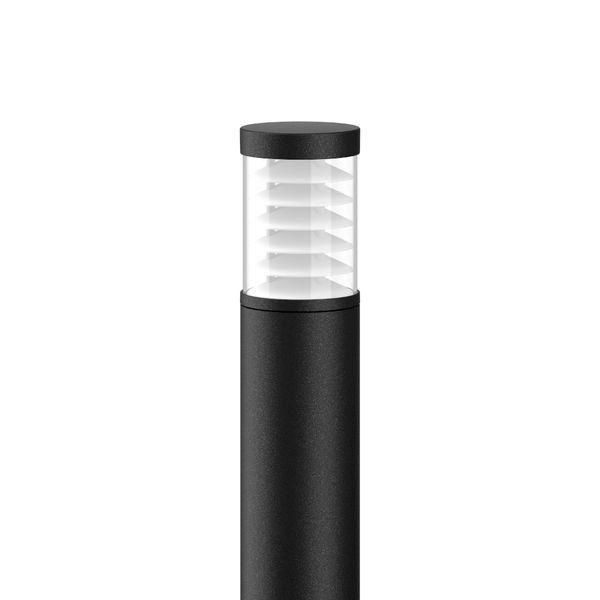

Attractive cylindrical bollard with innovative housing design and high-quality LED optics. For escape route illumination. Luminaire tube ø 115 mm made of corrosion-resistant aluminium profile, powder coated. Recessed stainless steel fixing plate. Non-corrosive gear compartment made of mould-cast dual compound thermoplastic with integral TP gasket. With membrane valve to avoid condensation. Luminaire head made of corrosion-resistant pressure die-cast aluminium, powder-coated, with transparent cylinder (glass) and translucent anti-glare louvres. Connection box on base, max. 2 x 3 x 2.5 mm² for through wiring.Driver integrated. For connection to the emergency power supply.
