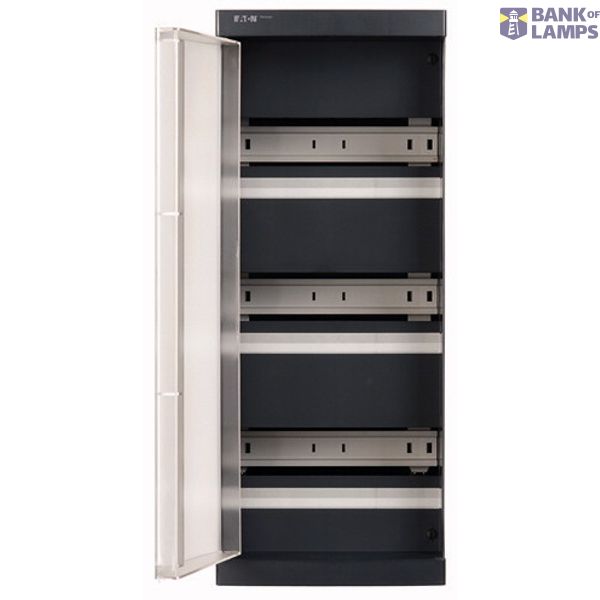

Medusa group enclosure, empty
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Medusa group enclosure, empty |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000214 |
| Mounting method | Surface mounted (plaster) |
| Housing material | Plastic |
| Degree of protection (IP) | IP3X |
| Cover model | With notch |
| Signal passing door | No |
Packing details
| Packing level 1 | 8711426744899 |
Other Technical data
| Colour | Black |
| Width | 220 mm |
| Height | 550 mm |
| Depth | 155 mm |
| RAL-number | 7016 |
| With mounting plate | No |
| Built-in depth | 55 mm |
| Number of rows | 3 |
| Built-in height | 0 mm |
| Type of cover | Door |
| Built-in width | 0 mm |
| EMC-version | No |
| Extension possible | Yes |
| Inner depth | 90 mm |
| DIN-rail | Yes |
| Width in number of modular spacings | 12 |
| Type of closure | Other |
| Transparent cover/door | Yes |
| With lock | No |
| Earthing terminal block | No |
| Neutral terminal block | No |
Description
Medusa compact distribution board (empty); 3x 12 space units; heavy-duty mounting frame with integrated insulating material DIN-rail; cover fasteners with with tool operation; mounting frame can be removed without tools; tested to NEN/EN 61439; heavy-duty cover/bottom section made of premium black ABS; transparent door; with entry for 16/19 mm conduits; degree of protection IP3X; with protective conductor terminal; without reserve section cover, incl. current circuit designation; H = 550 mm; W = 220 mm.
