Mechanical accessories Opendo H Silver 8045200

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4018242663507

MPN: 8045200

Package: 1

Pallet: 120

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Mechanical accessories Opendo H Silver 8045200
Brand	TRILUX
Categories	Luminaire accessories Luminaires
Country of origin	DE

Packing details

Packing level 1	4018242663507, 4018242663507
Packing level 2	4018242663507

Description

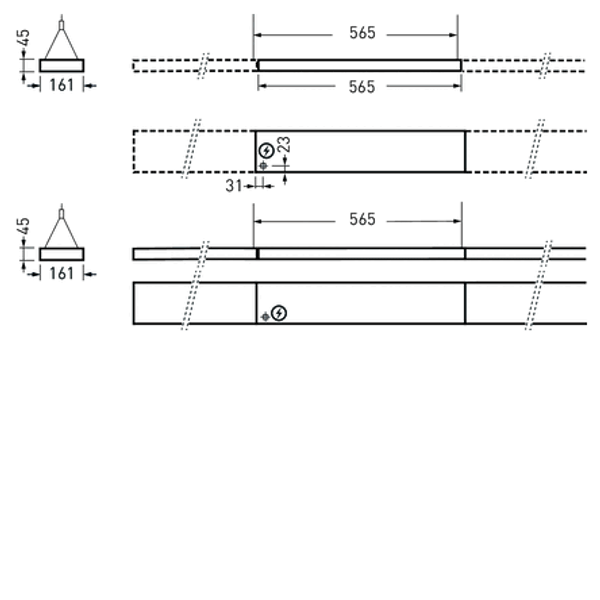

Blind module for Opendo H suspended luminaires in continuous line application. Suitable for new installations and refurbishment applications. LiveLink sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI devices. Square detection zone, detection squares for presence max. 4 m x 4 m (16 m2) / radial max. 4 m x 4 m (16 m2) / tangential max. 6 m x 6 m (36 m2) at recommended mounting height of 2,8 m, permissible mounting height 2.5 m to 4 m. Luminaire body of sheet steel, Cover made of plastic, colour silver-grey (RAL 9006). Length 565,3 mm, Width 160 mm, height 47 mm. Further lengths available on request. If a blind module is used as a single component, end caps (ordered separately) can be used to terminate the ends.
