Mechanical accessories Opendo D White 8043100

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

322,65 €

This price is valid until 24.12.25

EAN: 4018242663293

MPN: 8043100

Package: 1

Pallet: 60

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Mechanical accessories Opendo D White 8043100
Brand	TRILUX
Categories	Luminaire accessories Luminaires
Country of origin	DE

Packing details

Packing level 1	4018242663293, 4018242663293
Packing level 2	4018242663293

Description

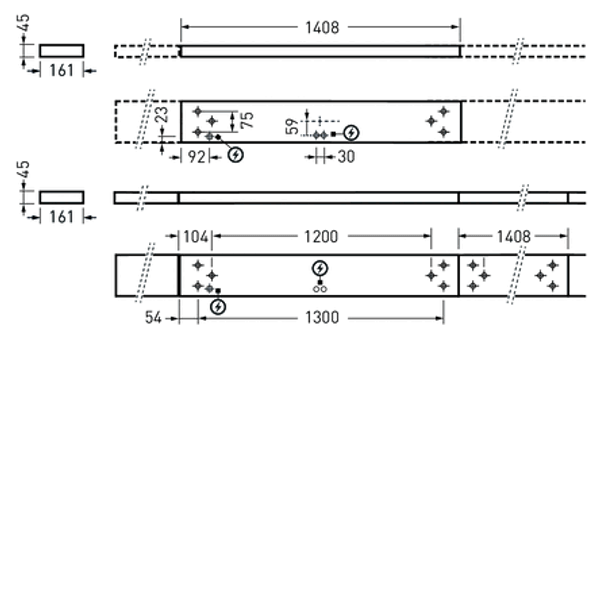

Blind module for Opendo D ceiling surface-mounted luminaires in continuous line application. Suitable for new installations and refurbishment applications. LiveLink sensor MSensor G3 PIR 5DPI for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Connection and electrical supply via the DALI interface of the LiveLink control unit. Number of occupied DALI devices: 5. Detection range: Ø 4,5 m, Mounting height 2,5 m - 5 m. Luminaire body of sheet steel, Cover made of plastic, colour white (RAL 9016). Length 1408,2 mm, Width 160 mm, height 47 mm. Further lengths available on request. If a blind module is used as a single component, end caps (ordered separately) can be used to terminate the ends.
