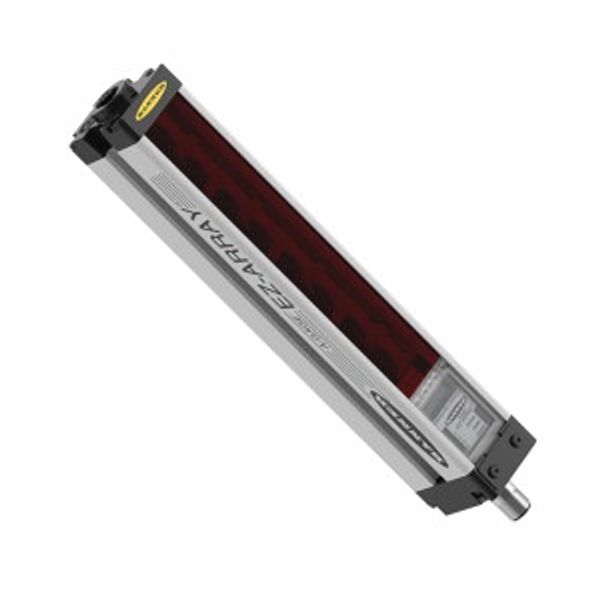

Measuring Light Screen Emitter EA5E900Q
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488754280
MPN: 3075428
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Measuring Light Screen Emitter EA5E900Q |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | US |
| Harmonized System Code | 9031 8020 00 |
| Type of electric connection | Connector M12 |
Packing details
| Packing level 1 | 0662488754280 |
Other Technical data
| Cascadable | No |
| Suitable for safety functions | No |
| Ambient temperature | -40 °C |
| Fade-out possible | Yes |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| With muting function | No |
| Override possible | No |
| Reduced resolution | No |
| Safety field height | 900 mm |
| With beam coding | No |
| Clock control possible | No |
| Resolution of the light curtain | 5 mm |
| Width sensor | 36 mm |
| Height of sensor | 978 mm |
| Length of sensor | 45.2 mm |
Downloads
Description
Metend lichtgordijn, zender, Bedrijfsspanning 12…30 VDC, max. reikwijdte 4000 mm, connector M12x1, 8-polig, hoogte 900 mm, Beschermingsklasse IP65, Resolutie 5 mm, Max. bereik 4 m, 2 x EZA-MBK-11 bevestigingsbeugel meegeleverd, bedrijfsspanning 12…30 VDC
