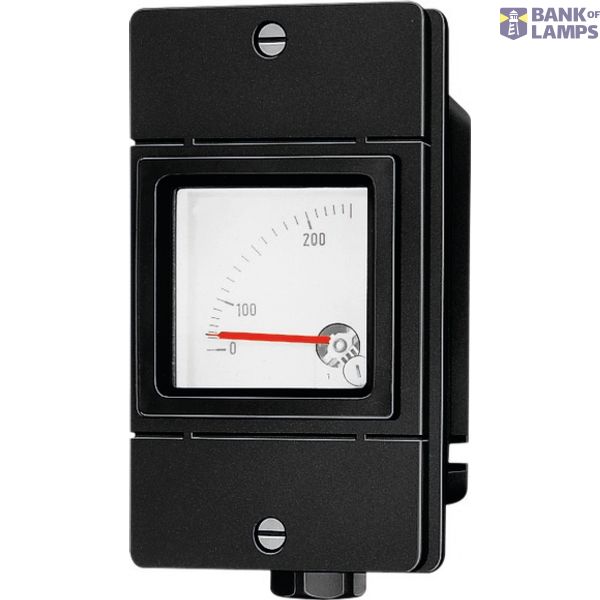

MEASURING INSTR. AM72 DIR 0-2,5/3,75A F image 1
MEASURING INSTR. AM72 DIR 0-2,5/3,75A F image 2
MEASURING INSTR. AM72 DIR 0-2,5/3,75A F image 3
MEASURING INSTR. AM72 DIR 0-2,5/3,75A F thumbnail 1
MEASURING INSTR. AM72 DIR 0-2,5/3,75A F thumbnail 2
MEASURING INSTR. AM72 DIR 0-2,5/3,75A F thumbnail 3
EATON

MEASURING INSTR. AM72 DIR 0-2,5/3,75A F

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name MEASURING INSTR. AM72 DIR 0-2,5/3,75A F
Brand EATON
ETIM EC002292
Model Built-in
Voltage type AC
Accuracy class 2.5
Measuring range 0-3.75 A
Measurement system Soft iron
Nominal end value of the scale 2.5 A

Packing details

Packing level 1 4250217409493

Other Technical data

Width 85 mm
Height 155 mm
Modular version No
Power loss 0.15 W
Transformer connection No
Max. needle deflection 90 °
Overcurrent scale Yes
Scales lighting No
Stay-set indicator No
Calibrated No

Description

Ex-e Measuring Instrument GHG 412 82, polyamide, 1xM25 Polyamide for Zone 1/21AM 72, direct measurement, 1 x M25, 0 - 2,5 / 3,75 A
