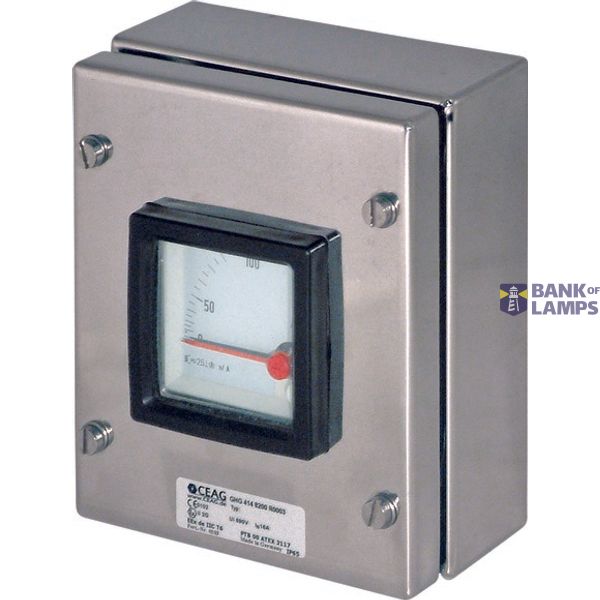

MEASUREMENT AM72 4-20/24MA 0-100% EX IB image 1
MEASUREMENT AM72 4-20/24MA 0-100% EX IB image 2
MEASUREMENT AM72 4-20/24MA 0-100% EX IB thumbnail 1
MEASUREMENT AM72 4-20/24MA 0-100% EX IB thumbnail 2
EATON

MEASUREMENT AM72 4-20/24MA 0-100% EX IB

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name MEASUREMENT AM72 4-20/24MA 0-100% EX IB
Brand EATON
ETIM EC002292
Model Surface mounting
Voltage type AC
Accuracy class 2.5
Measuring range 0-100 A
Measurement system Soft iron
Nominal end value of the scale 0.02 A

Packing details

Packing level 1 4250217475887

Other Technical data

Width 140 mm
Height 166 mm
Modular version No
Power loss 0.15 W
Transformer connection Yes
Max. needle deflection 90 °
Overcurrent scale Yes
Scales lighting No
Stay-set indicator No
Calibrated No

Description

Ex-e/Ex-i Measuring Instrument GHG 414 81, stainless steel AISI 316L, 1xM20 Polyamide for Zone 1/21AM72, 0-100%/150%
