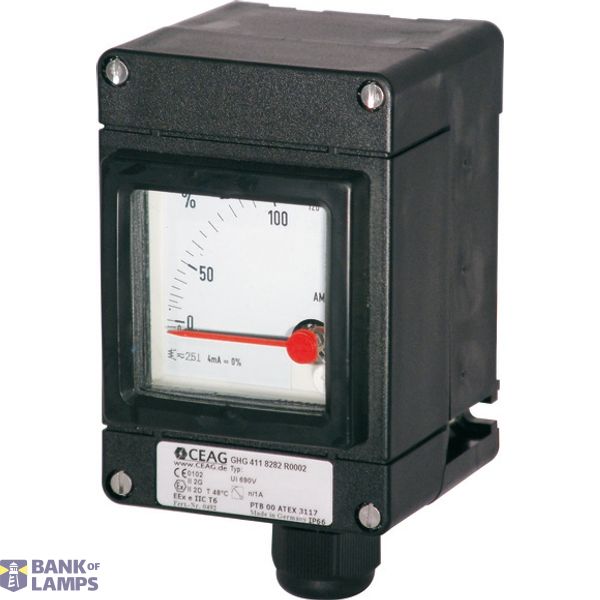

MEASUREMENT AM72 4-20/24MA 0-100% EX IB image 2
MEASUREMENT AM72 4-20/24MA 0-100% EX IB thumbnail 1
MEASUREMENT AM72 4-20/24MA 0-100% EX IB thumbnail 2
EATON

MEASUREMENT AM72 4-20/24MA 0-100% EX IB

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name MEASUREMENT AM72 4-20/24MA 0-100% EX IB
Brand EATON
ETIM EC002292
Model Surface mounting
Voltage type AC
Accuracy class 1.5
Measuring range 0.004-0.02 A
Measurement system Moving coil
Nominal end value of the scale 0.02 A

Packing details

Packing level 1 4250217426209

Other Technical data

Width 85 mm
Height 155 mm
Modular version No
Power loss 0.15 W
Transformer connection Yes
Max. needle deflection 90 °
Overcurrent scale Yes
Scales lighting No
Stay-set indicator No
Calibrated No

Description

Ex-e/Ex-i Measuring instrument GHG 411 82, polyamide, 1xM25 Polyamide for Zone 1/214 -20 / 24 mA/0 - 100% / 120 % (Ri=320 Ohm)
