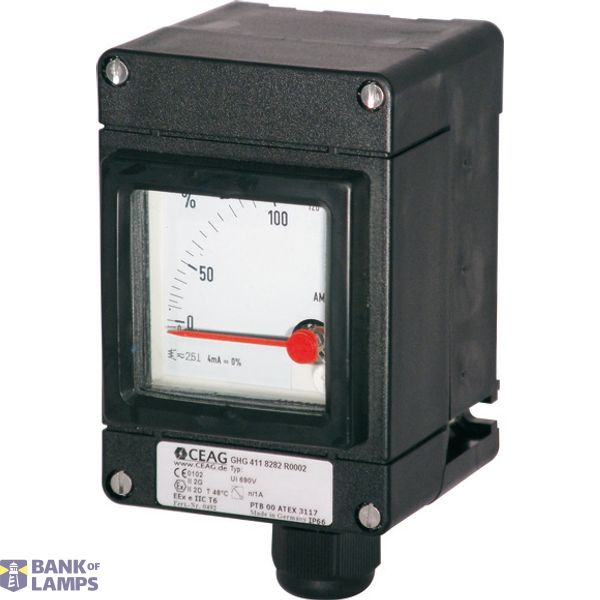

MEASUR INSTR AM72 DIR 0- 2,5/3,75A 1SJ25 image 1
MEASUR INSTR AM72 DIR 0- 2,5/3,75A 1SJ25 image 2
MEASUR INSTR AM72 DIR 0- 2,5/3,75A 1SJ25 thumbnail 1
MEASUR INSTR AM72 DIR 0- 2,5/3,75A 1SJ25 thumbnail 2
EATON

MEASUR INSTR AM72 DIR 0- 2,5/3,75A 1SJ25

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name MEASUR INSTR AM72 DIR 0- 2,5/3,75A 1SJ25
Brand EATON
ETIM EC002292
Model Surface mounting
Voltage type AC
Accuracy class 2.5
Measuring range 0-3.75 A
Measurement system Soft iron
Nominal end value of the scale 2.5 A

Packing details

Packing level 1 4250217426094

Other Technical data

Width 85 mm
Height 155 mm
Modular version No
Power loss 0.13 W
Transformer connection No
Max. needle deflection 90 °
Overcurrent scale Yes
Scales lighting No
Stay-set indicator No
Calibrated No

Description

Ex-e Measuring instrument GHG 411 82, polyamide, 1xM25 Polyamide for Zone 1/210 - 2,5 / 3,75 A
