MDBA-IPEC/50-16/375-L1/2/3-II Eaton Metering Board BI-Skap/TKS LV systems Final Distribution Boards
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | MDBA-IPEC/50-16/375-L1/2/3-II Eaton Metering Board BI-Skap/TKS LV systems Final Distribution Boards |
| Brand | EATON |
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000275 |
| Nominal current | 80 A |
| Number of poles | 1 |
| Suitable for solid conductors | Yes |
Packing details
| Packing level 1 | 4015081718030 |
| Packing level 2 | 9008790649523 |
Other Technical data
| Mounting method | DIN-rail/screw |
| Width | 60 mm |
| Height | 90 mm |
| Depth | 440 mm |
| Number of inputs | 3 |
| Number of outputs | 3 |
| Contact safe | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 16-50 mm² |
| Conductor cross section, output | 16 mm² |
| Conductor cross section, input AWG | 0 mm² |
| Conductor cross section, output AWG | 0 mm² |
Description

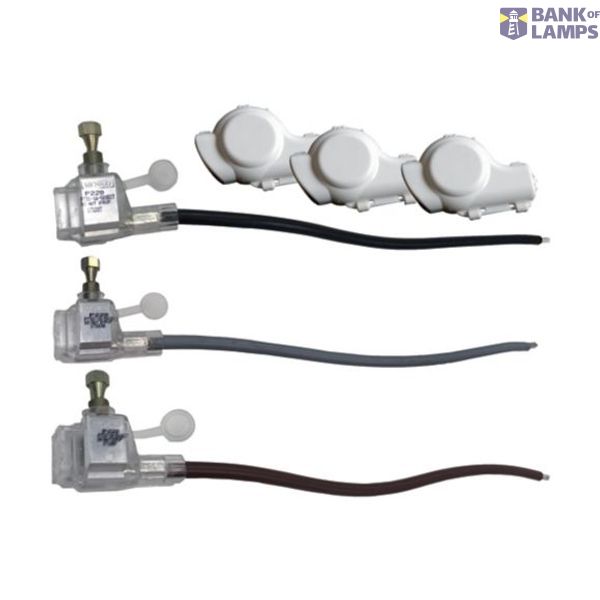

Connection terminals kit, MDBA-IPEC/50-16...; input 50 mm2, output 16 mm2; black/brown/gray, L = 375mm, incl. protection class II cover
