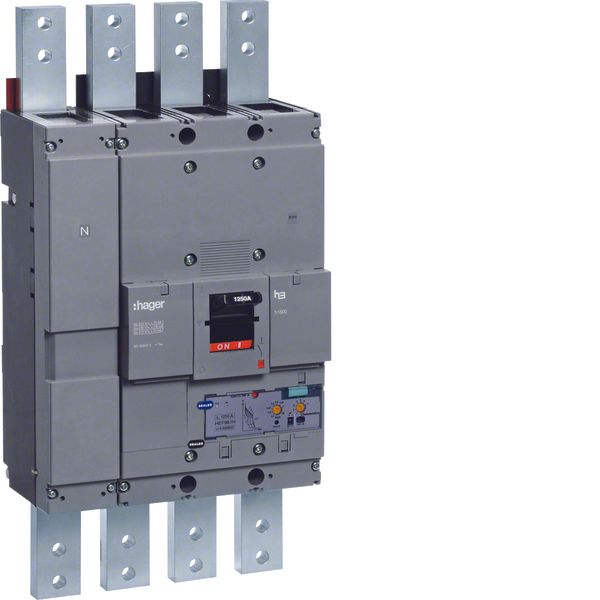

MCCB h1600 4P 50kA 1250A LSI
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
3 734,462 €
per pcs
EAN: 3250613349912
MPN: HNF981H
Package: 1
Pallet: 4
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | MCCB h1600 4P 50kA 1250A LSI |
| Brand | Hager |
| Categories |
Power Circuit Breakers
|
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 1250 A |
| Number of poles | 4 |
| Rated voltage | 220-690 V |
| Degree of protection (IP) | IP40 |
| With switched-off indicator | No |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 50 kA |
| Integrated earth fault protection | No |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3250613349912, 3250613349912 |
| Packing level 2 | 3250613349912 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With integrated under voltage release | No |
| Overload release current setting | 500-1250 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range short-term delayed short-circuit release | 0 A |
| Adjustment range undelayed short-circuit release | 7000-15000 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | No |
| Complete device with protection unit | Yes |
Description
Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI
Accessories
In stock: No
Hager
UVR 24VDC (h800-h1000-h1600)
101,363 €
per pcs
EAN: 3250613152154
MPN: HXE011H
Package: 1
Pallet: 1152
In stock: No
Hager
UVR 110-120VAC (h800-h1000-h1600)
101,363 €
per pcs
EAN: 3250613152161
MPN: HXE013H
Package: 1
Pallet: 1152
In stock: No
Hager
UVR 220-240VAC (h800-h1000-h1600)
101,363 €
per pcs
EAN: 3250613152178
MPN: HXE014H
Package: 1
Pallet: 1152
In stock: No
Hager
UVR 380-415VAC (h800-h1000-h1600)
101,363 €
per pcs
EAN: 3250613152185
MPN: HXE015H
Package: 1
Pallet: 1152
In stock: No
Hager
AX contact 1NO+1NC 230VAC(h250...1600)
45,022 €
per pcs
EAN: 3250613369514
MPN: HXC021H
Package: 1
Pallet: 2304
In stock: No
Hager
Alarm contact 1NO+1NC 230V(h250...1600)
45,022 €
per pcs
EAN: 3250613369521
MPN: HXC024H
Package: 1
Pallet: 2304
In stock: No
Hager
Direct rotary handle H1250-H1600
160,246 €
per pcs
EAN: 3250613370442
MPN: HXF030H
Package: 1
Pallet: 92
In stock: No
Hager
Extended rotary handle H1250-H1600
761,953 €
per pcs
EAN: 3250613370459
MPN: HXF031H
Package: 1
Pallet: 20
In stock: No
Hager
Padlock H1250-H1600
22,859 €
per pcs
EAN: 3250613370466
MPN: HXF039H
Package: 1
Pallet: 1152
In stock: No
Hager
Motor operator h1250-h1600 24V DC
1 696,477 €
per pcs
EAN: 3250613370473
MPN: HXF040H
Package: 1
Pallet: 96
