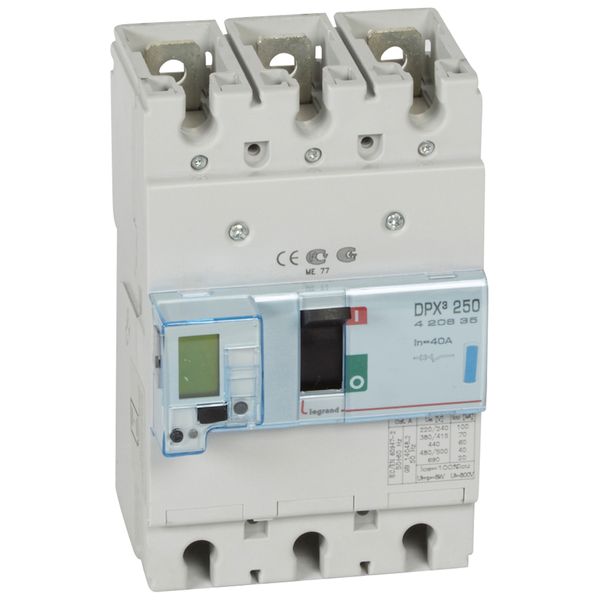

MCCB electronic release Sg - DPX³ 250 - Icu 70 kA - 400 V~ - 3P - 40 A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
509,55 €
per pcs
EAN: 3245064206921
MPN: 420692
Package: 1
Pallet: 48
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCCB electronic release Sg - DPX³ 250 - Icu 70 kA - 400 V~ - 3P - 40 A |
| Brand | Legrand |
| Categories |
Power Circuit Breakers
|
| Country of origin | IT |
| Harmonized System Code | 8536 2010 00 |
| Rated permanent current Iu | 40 A |
| Number of poles | 3 |
| Rated voltage | 220-690 V |
| Degree of protection (IP) | IP30 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70 kA |
| Integrated earth fault protection | Yes |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3245064206921, 3245064206921 |
| Packing level 2 | 3414971909724 |
Other Technical data
| Number of auxiliary contacts as normally closed contact | 1 |
| With integrated under voltage release | Yes |
| Overload release current setting | 16-40 A |
| Number of auxiliary contacts as change-over contact | 1 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range short-term delayed short-circuit release | 24-400 A |
| Adjustment range undelayed short-circuit release | 24-400 A |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Complete device with protection unit | Yes |
