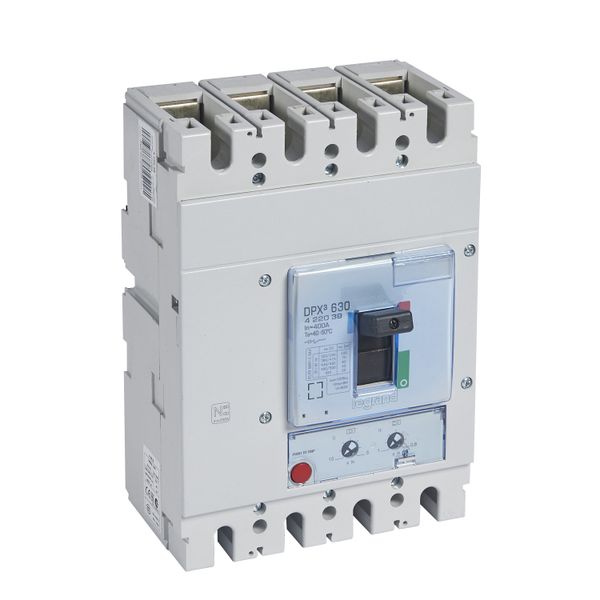

MCCB DPX³ 630 - thermal magnetic - 3P+N/2 - Icu 70 kA (400 V~) - In 400 A
Order only
Price (excl. VAT):
631,23 €
per pcs
EAN: 3414970378354
MPN: 422039
Package: 1
Pallet: 20
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCCB DPX³ 630 - thermal magnetic - 3P+N/2 - Icu 70 kA (400 V~) - In 400 A |
| Brand | Legrand |
| Categories |
Power Circuit Breakers
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 400 A |
| Number of poles | 4 |
| Rated voltage | 220-690 V |
| Degree of protection (IP) | IP30 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70 kA |
| Integrated earth fault protection | No |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3414970378354, 3414970378354 |
| Packing level 2 | 3414970378354 |
Other Technical data
| Number of auxiliary contacts as normally closed contact | 2 |
| With integrated under voltage release | Yes |
| Overload release current setting | 320-400 A |
| Number of auxiliary contacts as change-over contact | 2 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range short-term delayed short-circuit release | 2000-4000 A |
| Adjustment range undelayed short-circuit release | 2000-4000 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | No |
| Complete device with protection unit | Yes |
