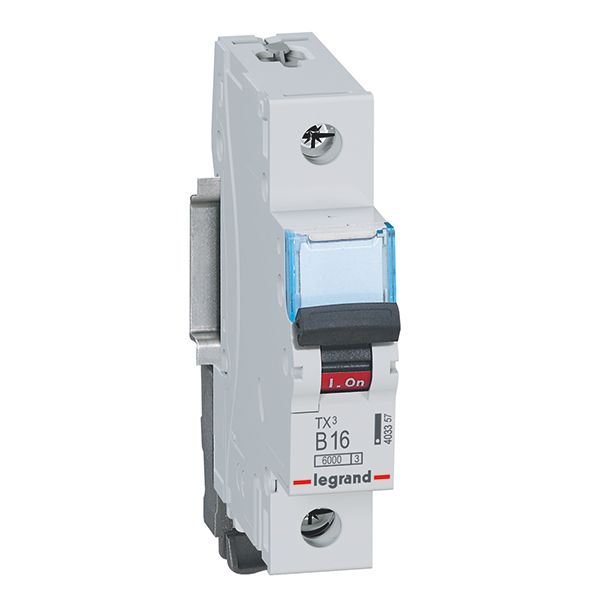

MCB TX3 1P 16A B-curve 6000A 230/400V
In vendor stock
Price (excl. VAT):
2,13 €
per pcs
EAN: 3414970386304
MPN: 403357
Package: 10
Box: 100
Pallet: 3000
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCB TX3 1P 16A B-curve 6000A 230/400V |
| Brand | Legrand |
| Categories |
Circuit breakers 16A
|
| Country of origin | PL |
| Harmonized System Code | 8536 2090 00 |
| Rated current | 16 A |
| Rated voltage | 230 V |
| Release characteristic | B |
| Width in number of modular spacings | 1 |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Packing details
| Packing level 1 | 3414970386311 |
| Packing level 2 | 3414970445148 |
| Packing level 3 | 3414970631930 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 44 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 500 V |
| Current limiting class | 3 |
| Over voltage category | 0 |
| Pollution degree | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching neutral conductor | No |
| Flush-mounted installation | Yes |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 6 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
