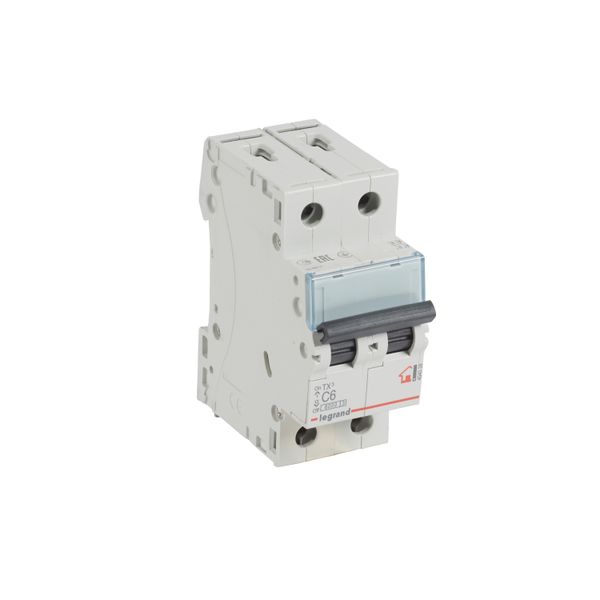

MCB TX3 2P C6 6000A
Order only
Minimal order quantity: 5
Price (excl. VAT):
19,19 €
per pcs
Subtotal: 95,95 €
MOQ: 5
EAN: 3245064040396
MPN: 404039
Package: 5
Box: 50
Pallet: 500
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCB TX3 2P C6 6000A |
| Brand | Legrand |
| Categories |
Circuit breakers 6A
|
| Country of origin | PL |
| Harmonized System Code | 8536 2010 00 |
| Rated current | 6 A |
| Rated voltage | 400 V |
| Release characteristic | C |
| Width in number of modular spacings | 2 |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 kA |
Packing details
| Packing level 1 | 3245064040396 |
| Packing level 2 | 3245064040393 |
| Packing level 3 | 3245064040396 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 44 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 500 V |
| Current limiting class | 3 |
| Pollution degree | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 2 |
| Concurrently switching neutral conductor | No |
| Flush-mounted installation | Yes |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 6 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
