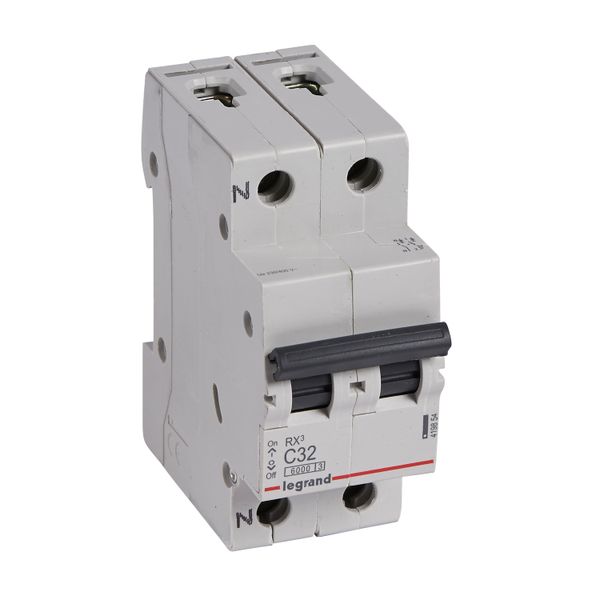

MCB RX3 1P+N C32 6000A
Order only
Minimal order quantity: 6
Price (excl. VAT):
6,82 €
per pcs
Subtotal: 40,92 €
MOQ: 6
EAN: 3414970369901
MPN: 419854
Package: 6
Box: 36
Pallet: 1728
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCB RX3 1P+N C32 6000A |
| Brand | Legrand |
| Categories |
Circuit breakers 32A
|
| Country of origin | PL |
| Harmonized System Code | 8536 2010 00 |
| Rated current | 32 A |
| Rated voltage | 230 V |
| Release characteristic | C |
| Width in number of modular spacings | 2 |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Packing details
| Packing level 1 | 3414970468932 |
| Packing level 2 | 3414970501547 |
| Packing level 3 | 3414970581730 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 44 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 400 V |
| Current limiting class | 3 |
| Pollution degree | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching neutral conductor | Yes |
| Flush-mounted installation | Yes |
| Additional equipment possible | No |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 6 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
