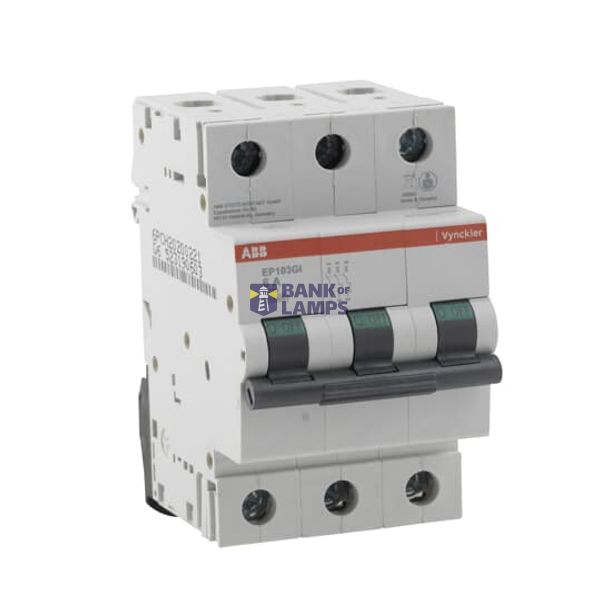

EP103GI32 Miniature Circuit Breaker
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EP103GI32 Miniature Circuit Breaker |
| Brand | ABB |
| Harmonized System Code | 8536 2010 00 |
| ETIM | EC000042 |
| Rated current | 30 A |
| Rated voltage | 400 V |
| Release characteristic | G |
| Width in number of modular spacings | 3 |
| Number of poles (total) | 3 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 kA |
Packing details
| Packing level 1 | 5413656709596 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 44 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 500 V |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 3 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 1-35 mm² |
| Connectable conductor cross section multi-wired | 0.75-25 mm² |
| Ambient temperature during operating | -25-55 °C |
| Flush-mounted installation | No |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 30 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
Downloads
Description
MCB EP100Gi 10kA 3P Gi 30A
