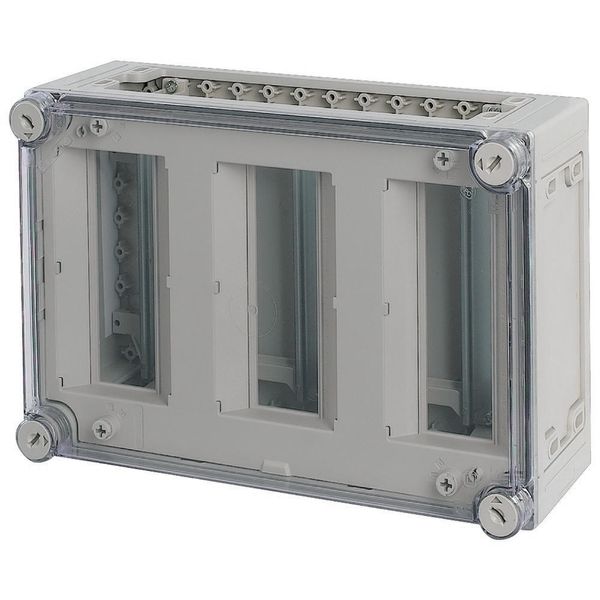

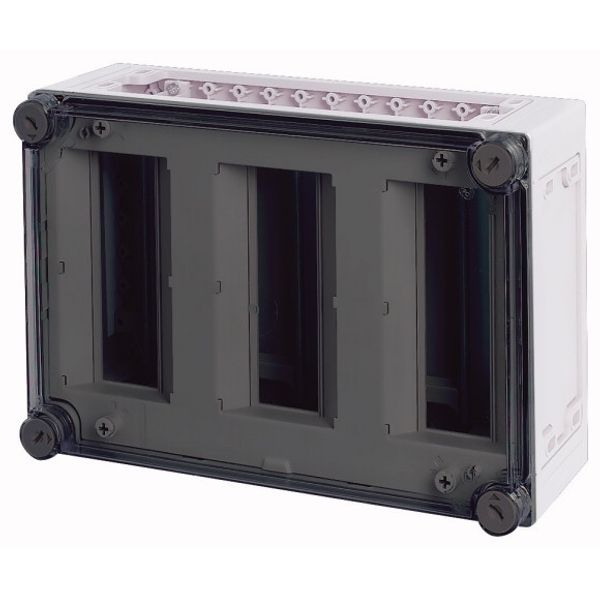

AV/I43-125 MCB enclosure, IP65, mounting rail vertical, HxWxD=250x375x150mm
Order only
Price (excl. VAT):
91,46 €
EAN: 4015080479543
MPN: 047954
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | AV/I43-125 MCB enclosure, IP65, mounting rail vertical, HxWxD=250x375x150mm |
| Brand | EATON |
| Categories |
Cabinet Enclosures
|
| Country of origin | PL |
| Harmonized System Code | 8538 9099 00 |
| Circuit integrity | Other |
| Impact strength | IK10 |
| Degree of protection (IP) | Other |
Packing details
| Packing level 1 | 4015080479543 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Protection class | II |
| Colour | Grey |
| Width | 375 mm |
| Height | 250 mm |
| Depth | 150 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Surface protection | Other |
| Built-in depth | 100 mm |
| Number of rows | 3 |
| Type of cover | Optional |
| Number of conduit inlets | 76 |
| Extension possible | No |
| Inner depth | 125 mm |
| Housing material | Plastic |
| Width in number of modular spacings | 15 |
| Suitable for outdoor use | Yes |
| Number of modules | 1 |
| Type of door | None |
| Transparent cover/door | Yes |
| With lock | No |
| Suitable for lightning protection | Yes |
| Nominal current (In) | 1600 A |
| Material plate thickness cabinet | 6 mm |
| Material plate thickness door/cover | 6 mm |
| Cover model | Closed |
| Number of openings for flange plates | 4 |
| Degree of protection (NEMA) | Other |
| Cover with overpressure release | Yes |
Description
MCB distribution board enclosure, patented cover fasteners with integrated overpressure compensation, material characteristic polycarbonate, impact-resistant, degree of protection IP65, enclosure side plates closed, full-area knockout, open top and bottom, for mounting devices with frame size 1 to DIN 43880, transparent smoky cover with quick-release fasteners, mounting rails for snap-fitting the devices, blanking strip for unused mounting locations, protective shroud with inscription label, sealable cover fasteners, cover type: transparent smoky, base type: closed, full-area knockout, depth=150mm, number space units=27
