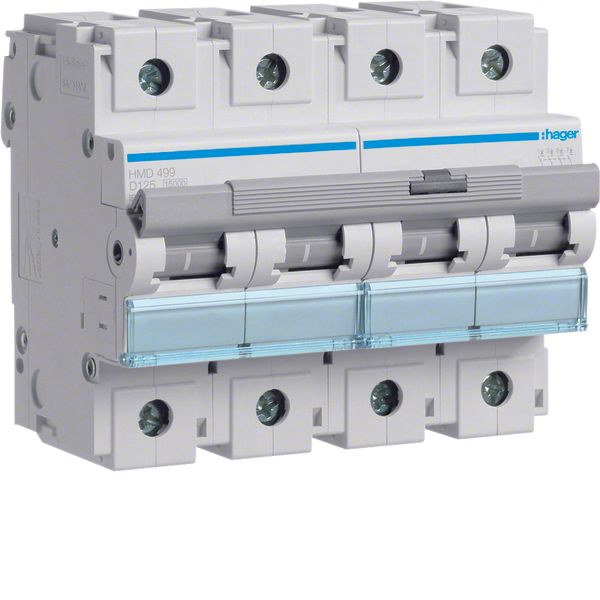

MCB 4P 15kA D-125A 6M
Order only
Price (excl. VAT):
224,88 €
per pcs
EAN: 3250613230364
MPN: HMD499
Package: 1
Pallet: 504
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCB 4P 15kA D-125A 6M |
| Brand | Hager |
| Categories |
Breakers
|
| Harmonized System Code | 8536 2010 00 |
| Rated current | 125 A |
| Rated voltage | 415 V |
| Release characteristic | D |
| Width in number of modular spacings | 6 |
| Number of poles (total) | 4 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 15 kA |
Packing details
| Packing level 1 | 3250613230364, 3250613230364 |
| Packing level 2 | 3250613230364 |
| Packing level 3 | 3250613230364 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 70 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 500 V |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 4 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 1-70 mm² |
| Connectable conductor cross section multi-wired | 1-50 mm² |
| Ambient temperature during operating | -25-70 °C |
| Flush-mounted installation | Yes |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 15 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 15 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
Description
MCB 4P 15kA D-125A 6M
