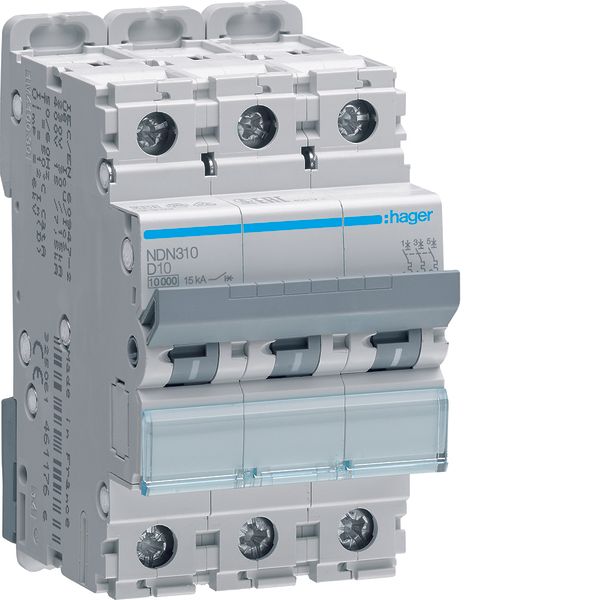

Miniature Circuit Breaker 3P 10A D-Curve 10kA 3M
Order only
Price (excl. VAT):
23,42 €
per pcs
EAN: 3250614611742
MPN: NDN310
Package: 1
Box: 4
Pallet: 1152
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Miniature Circuit Breaker 3P 10A D-Curve 10kA 3M |
| Brand | Hager |
| Categories |
Circuit breakers 10A
|
| Harmonized System Code | 8536 2010 00 |
| Rated current | 10 A |
| Rated voltage | 400 V |
| Release characteristic | D |
| Width in number of modular spacings | 3 |
| Number of poles (total) | 3 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 kA |
Packing details
| Packing level 1 | 3250614611742 |
| Packing level 2 | 3250614611742 |
| Packing level 3 | 3250614611742 |
| Packing level 4 | 3250614611742 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 70 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 500 V |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 3 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 1-35 mm² |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Ambient temperature during operating | -25-70 °C |
| Flush-mounted installation | Yes |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 30 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
Description
MCB 3P 10kA/15kA D-10A 3M
