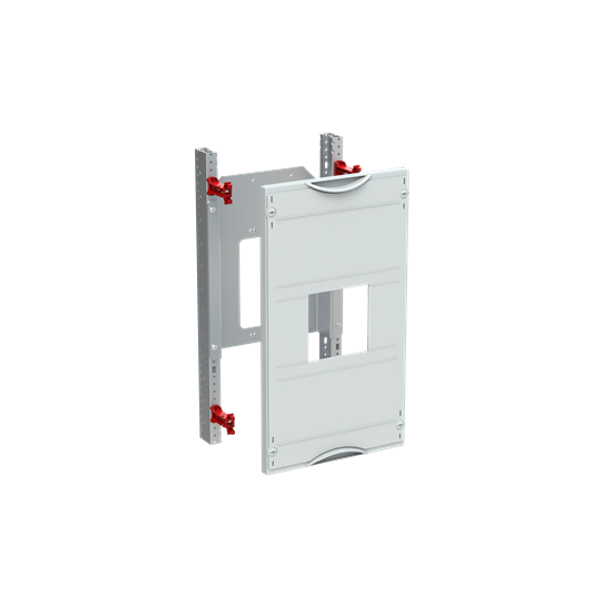

MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 image 1

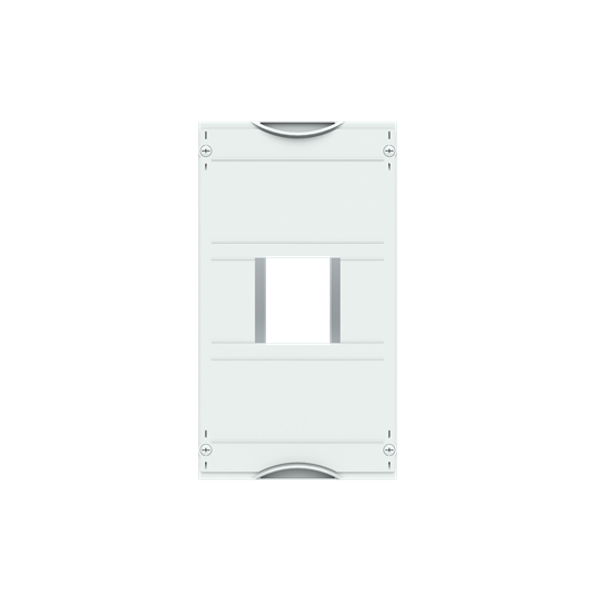

MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 image 2

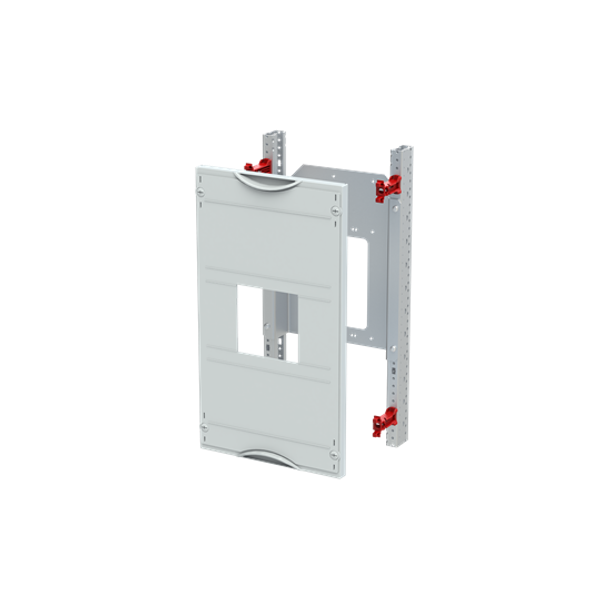

MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 image 3

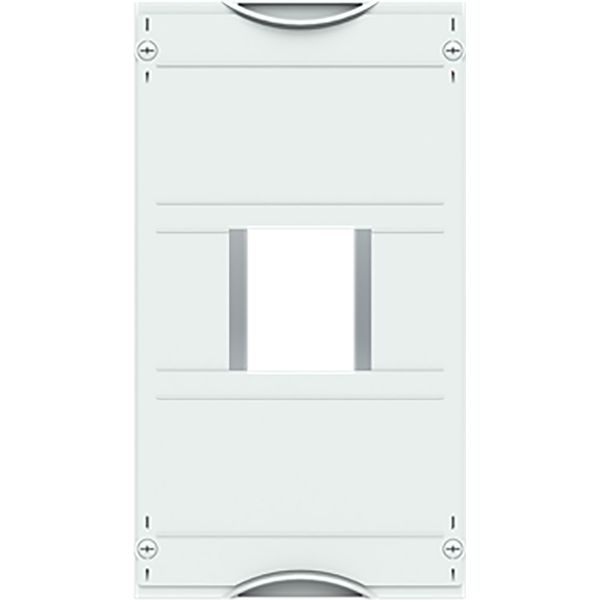

MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 image 4
MD01 image 5
MD99 image 6
MD99 image 7
MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 image 8
MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 thumbnail 1
MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 thumbnail 2
MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 thumbnail 3
MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 thumbnail 4
MD01 thumbnail 5
MD99 thumbnail 6
MD99 thumbnail 7
MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1 thumbnail 8
ABB

MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
81,53 € per pcs
This price is valid until 31.12.30
EAN: 4011617416463
MPN: 2CPX041646R9999
Box: 1
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name MBA192T Main circuit breaker Tmax 450 mm x 250 mm x 215 mm , 00 , 1
Brand ABB
Categories Preassembled Distribution Units
Harmonized System Code 8538 1000 00
Suitable for power circuit breaker TRUE
Rated operation current 400 A
Equipped with switch disconnector FALSE

Packing details

Packing level 1 4011617416463
Packing level 2 4011617416463

Other Technical data

Width 250 mm
Height 450 mm
Depth 88 mm
With cover Yes
Plastic cover plate TRUE
With auxiliary terminal FALSE
Number of switches 0
Suitable for switch disconnector FALSE
Suitable for no-voltage switch FALSE
Suitable for reverser FALSE
Equipped with power circuit-breaker FALSE
Equipped with no-voltage switch FALSE
Equipped with reverser FALSE

Downloads

Others Deep link REACH Declaration DOC CE (Declaration of conformity CE) Declaration RoHS

Description

Innenausbau Modul, CombiLine, Bausatz unmontiert, für Leistungsschalter Tmax, Rasteinheit 3 RE = 450 mm, Feldbreite 1 = 250 mm, 36 Platzeinheiten, nutzbare Breite von 140 mm, unbestückt für den Einbau von 1 Leistungsschalter T4, T5 / XT4, XT5, für Sammelschienensystem -polig, Bemessungsstrom In max. 400 A, Abdeckungen aus Kunststoff, 90 Grad Druck-Drehverschluss, RAL 7035, Ausführung der Abdeckung: mit Ausschnitt, einsetzbar ab einer Schranktiefe von 215 mm, EDF oder WR Montagegerüst muss separat bestellt werden
