MAXI MV clamp St/tZn f. Rd 8-16 / 15-25mm with screw M12x65mm

Order only

Price (excl. VAT):

6,20 €

This price is valid until 24.12.25

EAN: 4013364056411

MPN: 308041

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	MAXI MV clamp St/tZn f. Rd 8-16 / 15-25mm with screw M12x65mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Type of fastening screws	Hexagon screw
Material	Steel
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	8-16 mm

Packing details

Packing level 1

4013364056411, 4013364056411

Other Technical data

Type of connector	T-/cross-/parallel connector
Diameter round conductor 2	15-25 mm

Downloads

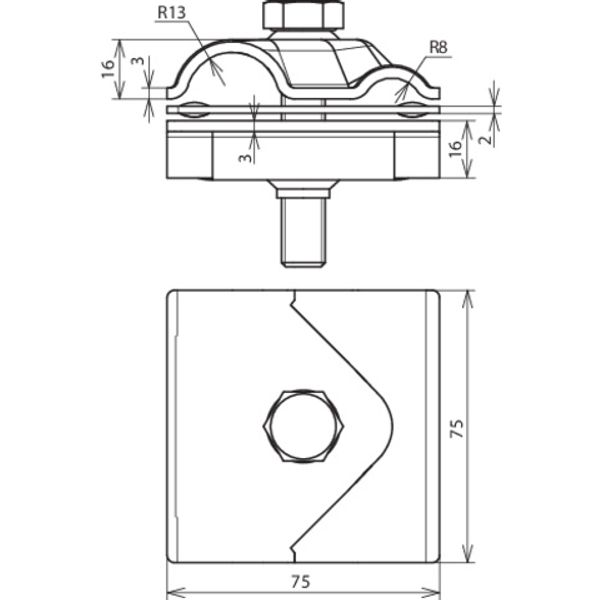

Product data sheet Dimensioned drawing Deep link REACH

Description

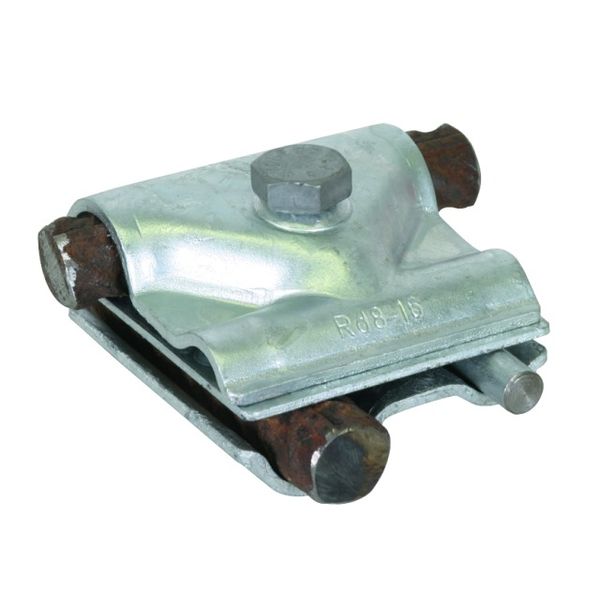

Maxi multipurpose connecting clamp according to EN 62561-1, for universal use as a cross clamp, T clamp, and parallel clamp for connecting reinforcing bars or earth rods. Three-piece with hexagon screw and thread in the base part.
