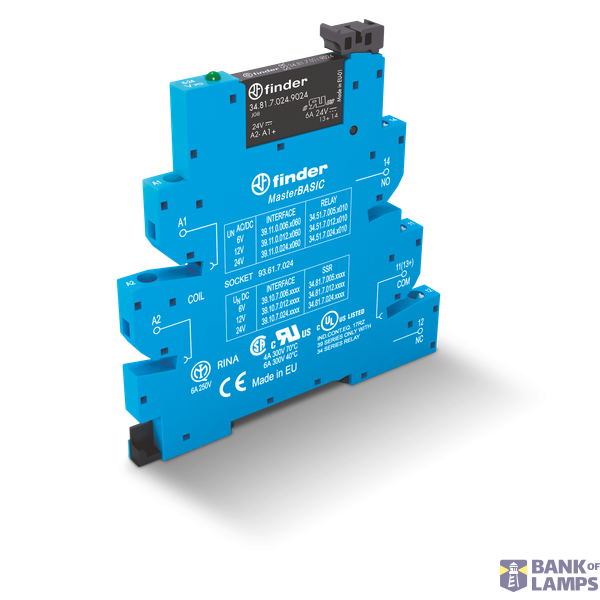

MASTERBASIC - INTERFACE RELAY SSR

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MASTERBASIC - INTERFACE RELAY SSR
Brand	FINDER
ETIM	EC002055
Rated operation current Ie at AC-1	0.1 A
Voltage type for actuating	AC/DC

Packing details

Packing level 1	8012823419671
Packing level 2	8012823419664

Other Technical data

Number of phases	1
Modular version	Yes
Rated control supply voltage at AC 50 Hz	125 V
Rated control supply voltage at AC 60 Hz	125 V
Rated control supply voltage at DC	125 V
Operating voltage	1.5-53 V
Switching at zero-crossing	No

Description

Relay interface modules SSR Nr.contacts: 1 Contacts configuration: NO Number of phases: 1 Modular version: yes Volt AC: 125 V. Volt DC: 125 V. Operating voltage: from 1.5 to 53 V. Rated operation current Ie at AC-1: 0.1 A. Coil version: AC/DC Switching at zero-crossing: no Accessories: Jumper link;plastic separator;PLC adapter
