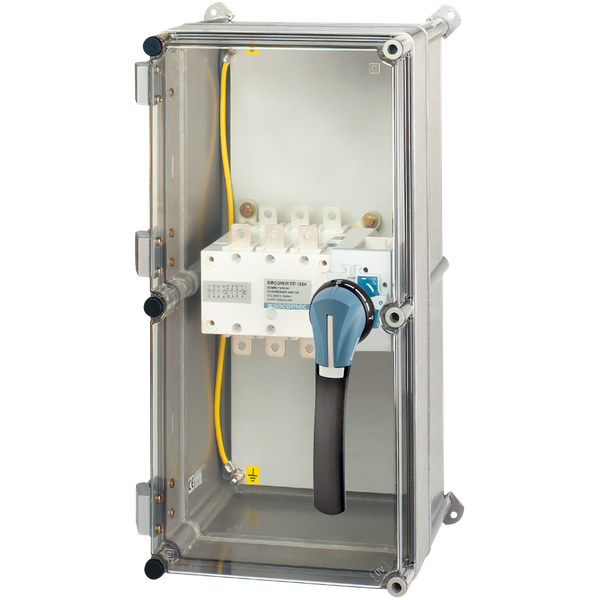

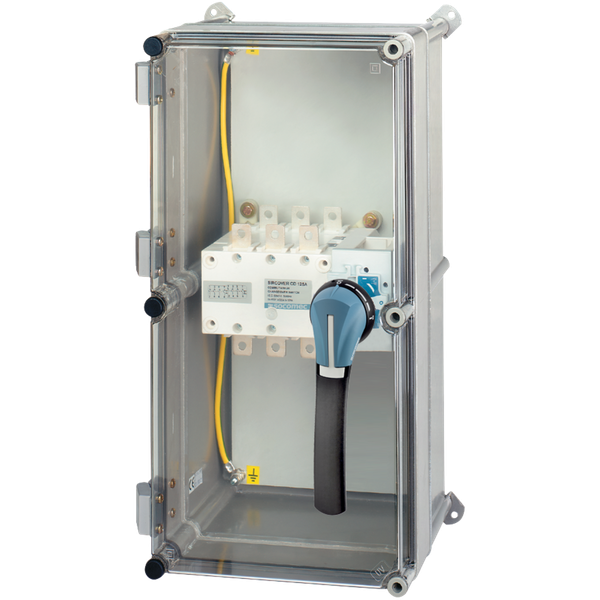

Manual transfer switch SIRCOVER I-0-II 4P 250A in polyester enclosure
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 404,93 €
EAN: 3596031210152
MPN: 42154025
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Manual transfer switch SIRCOVER I-0-II 4P 250A in polyester enclosure |
| Brand | Socomec |
| Categories |
Switch Disconnectors
|
| Country of origin | FR |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 250 A |
| Number of poles | 4 |
| Rated operating voltage | 400-690 V |
| Degree of protection (IP), front side | IP55 |
| Version as main switch | No |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
| Rated short-time withstand current lcw | 8 kA |
Packing details
| Packing level 1 | 3596031210152 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 2 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Bolt connection |
| Version as emergency stop installation | No |
| Type of control element | Door coupling rotary drive |
| Rated operation power at AC-23, 400 V | 132 kW |
| Colour control element | Black |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 1000 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 250 A |
| Switching power at 400 V | 132 kW |
| Version as reversing switch | Yes |
| Rated permanent current at AC-23, 400 V | 250 A |
| Degree of protection (NEMA) | Other |
Downloads
Description
Manually operated transfer switch SIRCOVER 4P 250A IP55 polyester enclosure
