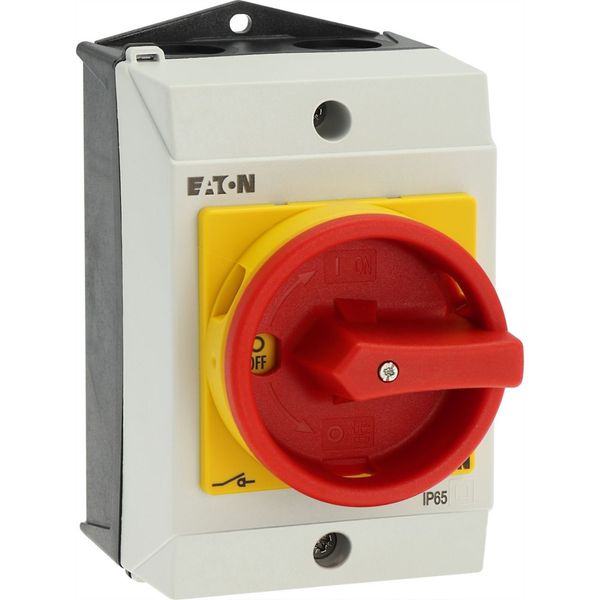

T0-1-8200/I1/SVB Main switch, T0, 20 A, surface mounting, 1 contact unit(s), 1 pole, Emergency switching off function, With red rotary handle and yellow locking ring,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
27,88 €
EAN: 4015082071455
MPN: 207145
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | T0-1-8200/I1/SVB Main switch, T0, 20 A, surface mounting, 1 contact unit(s), 1 pole, Emergency switching off function, With red rotary handle and yellow locking ring, |
| Brand | EATON |
| Categories |
Switch Disconnectors
|
| Country of origin | GB |
| Harmonized System Code | 8536 5080 00 |
| Width | 80 |
| Height | 110 |
| Depth | 137 |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 20 A |
| Number of poles | 1 |
| Rated operating voltage | 690 V |
| Conditioned rated short-circuit current Iq | 6 kA |
| Degree of protection (IP), front side | IP65 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | Yes |
| Type of control element | Door coupling rotary drive |
| Version as main switch | Yes |
| Version as safety switch | No |
| Version as maintenance-/service switch | Yes |
| Rated operation power at AC-23, 400 V | 5.5 kW |
| Rated short-time withstand current lcw | 0.32 kA |
| Colour control element | Red |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 20 A |
| Switching power at 400 V | 5.5 kW |
| Version as reversing switch | No |
| Rated permanent current at AC-23, 400 V | 13.3 A |
| Degree of protection (NEMA) | 12 |
| With pre-assembled cabling | No |
Packing details
| Packing level 1 | 4015082071455 |
Description
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 1 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
