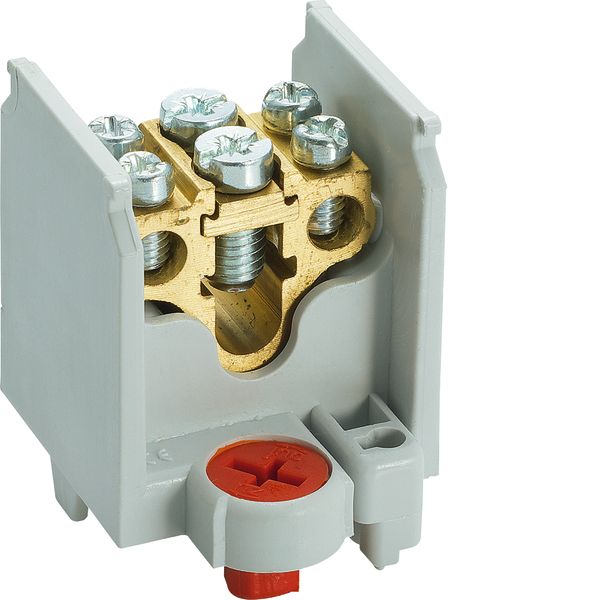

Main line branch term. 1 p.1x35²/2x25mm² image 1
Hager

Main line branch term. 1 p.1x35²/2x25mm²

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
10,615 € per pcs
This price is valid until 31.12.25
EAN: 4010330710377
MPN: K64
Package: 1
Box: 4
Pallet: 2000
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Main line branch term. 1 p.1x35²/2x25mm²
Brand Hager
Categories Busbar Systems and Accessories
Country of origin DE
Harmonized System Code 8536 9010 00
Nominal current 100 A
Number of poles 1
Suitable for solid conductors No

Packing details

Packing level 1 4010330710377
Packing level 2 4010330710377
Packing level 3 4010330710377
Packing level 4 4010330710377

Other Technical data

Mounting method Screw
Width 56 mm
Height 53 mm
Depth 40 mm
Connection type Screwing
Contact safe No
Suitable for fine strand conductors No
Suitable for stranded conductors No
Suitable for fine strand conductors without cable end sleeve No
Suitable for extra fine-strand conductors No
Suitable for extra fine-strand conductors without cable end sleeve No

Description

Main line branch terminal, 1 p., 1x35mm²- 2x25 mm²
