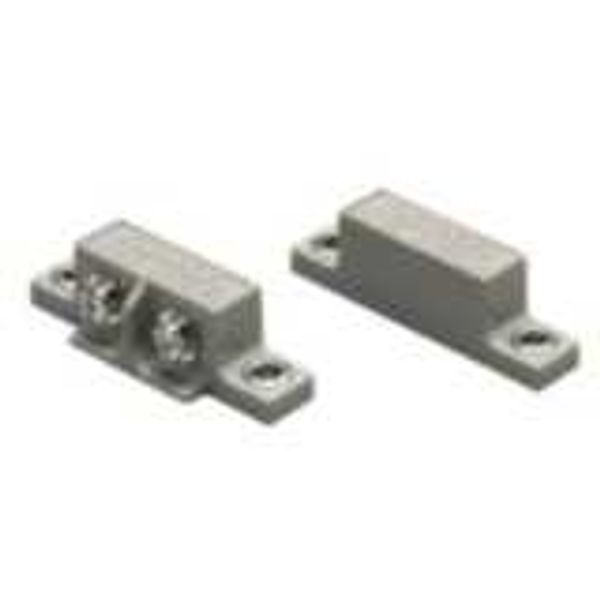

Magnetic Proximity Sensor, reed switch, sensor and magnet set GLS 1019M

Order only Minimal order quantity: 10

Price (excl. VAT):

22,82 €

This price is valid until 24.12.26

Subtotal: 228,20 € MOQ: 10

EAN: 4549734511469

MPN: GLS-1

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Magnetic Proximity Sensor, reed switch, sensor and magnet set GLS 1019M
Brand	Omron
Categories	Proximity Sensors
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9031 9000 00
ETIM	EC002544
Voltage type	DC
Housing material	Plastic
Suitable for safety functions	No
Switching distance	15 mm
Type of interface for safety communication	Other
Type of electric connection	Screw connection
Type of switching output	Dry reed contact
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Special construction
Degree of protection (IP)	IP40
Rated supply voltage at DC	100 V
Performance level according to EN ISO 13849-1	None
SIL according to IEC 61508	None

Packing level 1

4549734511469, 4549734511469

Coating housing	Other
With status indication	No
Ambient temperature	-20-60 °C
Number of semiconductor outputs with signalling function	0
Number of contact energized outputs with signalling function	1
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Protected switch distance OFF	15 mm
Mechanical mounting condition for sensor	Not flat
With monitoring function downstream switching devices	No
Cross-/short circuit identification possible	No
Type of actuation	Magnet
Width sensor	14 mm
Height of sensor	14 mm
Length of sensor	50 mm
Degree of protection (NEMA)	Other

Product data sheet

Magnetic Proximity Sensor, reed switch, sensor and magnet set
