ABB

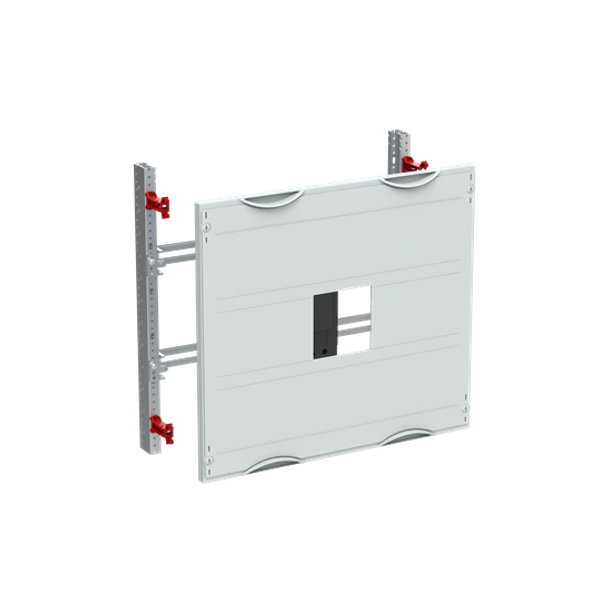

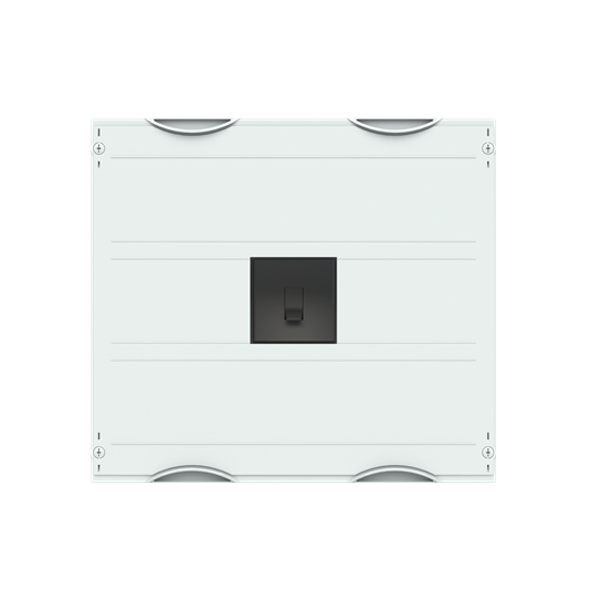

MA400ALSB Main circuit breaker Tmax 450 mm x 500 mm x 215 mm , 00 , 2

Order only
Price (excl. VAT):
1 622,27 € per pcs
This price is valid until 24.12.30
EAN: 4011617413844
MPN: 2CPX041384R9999
Box: 1
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name MA400ALSB Main circuit breaker Tmax 450 mm x 500 mm x 215 mm , 00 , 2
Brand ABB
Categories Preassembled Distribution Units
Harmonized System Code 8538 1000 00
Number of poles 3
Suitable for power circuit breaker FALSE
Rated operation current 400 A
Equipped with switch disconnector FALSE

Packing details

Packing level 1 4011617413844
Packing level 2 4011617413844

Other Technical data

Width 500 mm
Height 450 mm
Depth 215 mm
With cover TRUE
Plastic cover plate TRUE
With auxiliary terminal FALSE
Number of switches 1
Suitable for switch disconnector FALSE
Suitable for no-voltage switch FALSE
Suitable for reverser FALSE
Equipped with power circuit-breaker TRUE
Equipped with no-voltage switch FALSE
Equipped with reverser FALSE

Downloads

Others Declaration RoHS Deep link REACH Declaration DOC CE (Declaration of conformity CE)

Description

Innenausbau Modul, CombiLine, montiert im Schrank eingebaut, für Leistungsschalter Tmax, Rasteinheit 3 RE = 450 mm, Feldbreite 2 = 500 mm, 72 Platzeinheiten, bestückt mit 1 Leistungsschalter T5 / XT5, Betriebsmittel Fabrikat: ABB, Tmax XT / T, für Sammelschienensystem 3-polig, Bemessungsstrom In max. 400 A, Abdeckungen aus Kunststoff, 90 Grad Druck-Drehverschluss, RAL 7035, Ausführung der Abdeckung: mit Ausschnitt, einsetzbar ab einer Schranktiefe von 215 mm, EDF oder WR Montagegerüst muss separat bestellt werden
