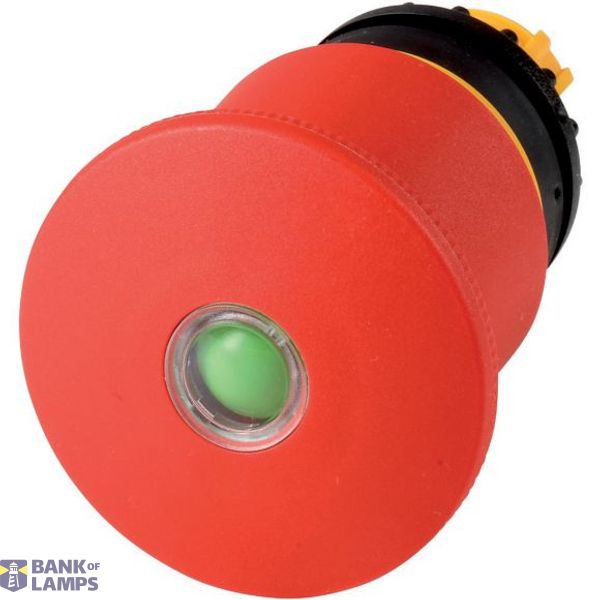

M22-PV45P-MPI-GVP Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | M22-PV45P-MPI-GVP Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton |
| Brand | EATON |
| Country of origin* | MA |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC001038 |
| Hole diameter | 22.5 mm |
| Colour button | Red |
| Type of button | High |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
Packing details
| Packing level 1 | 4015081977093 |
| Packing level 2 | 4015081977222 |
Other Technical data
| Suitable for illumination | No |
| Unlocking method | Pull-release |
| Spring-return | No |
| Diameter cap | 45 mm |
| Suitable for emergency stop | Yes |
| Colour front ring | Other |
| With lighting | No |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material front ring | Other |
| With front ring | No |
| Construction type lens | Round |
| Supply voltage lamp | 0 V |
| Switching function latching | Yes |
Description
Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 45 mm, Non-illuminated, Pull-to-release function, Red, yellow, with mechanical switch position indication, big pack
