  • M22-AK01-GVP500 Eaton Moeller® series M22 Function element

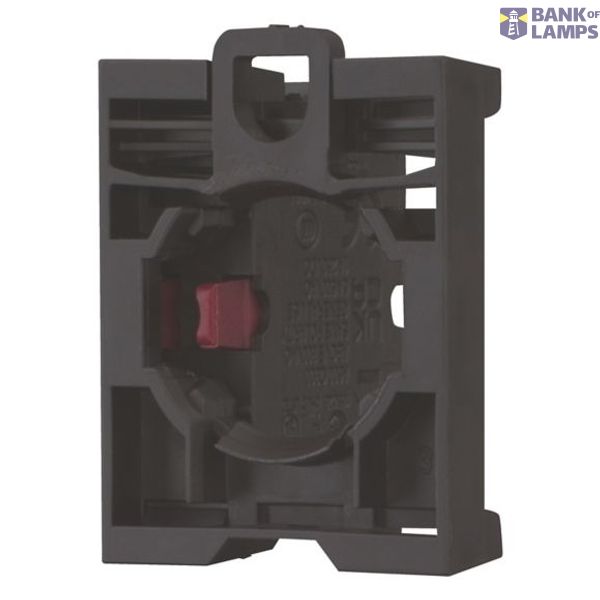

M22-AK01-GVP500 Eaton Moeller® series M22 Function element image 1
EATON

M22-AK01-GVP500 Eaton Moeller® series M22 Function element

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name M22-AK01-GVP500 Eaton Moeller® series M22 Function element
Brand EATON
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 5080 00
ETIM EC000041
Mounting method Front fastening
Model Top mounting
Rated operation current Ie at AC-15, 230 V 6 A
Type of electric connection Screw connection
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 0
Number of contacts as change-over contact 0

Packing details

Packing level 1 4015081684823
Packing level 2 4015081885916

Other Technical data

Lamp holder None
Number of fault-signal switches 0

Description

Contact element, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15
