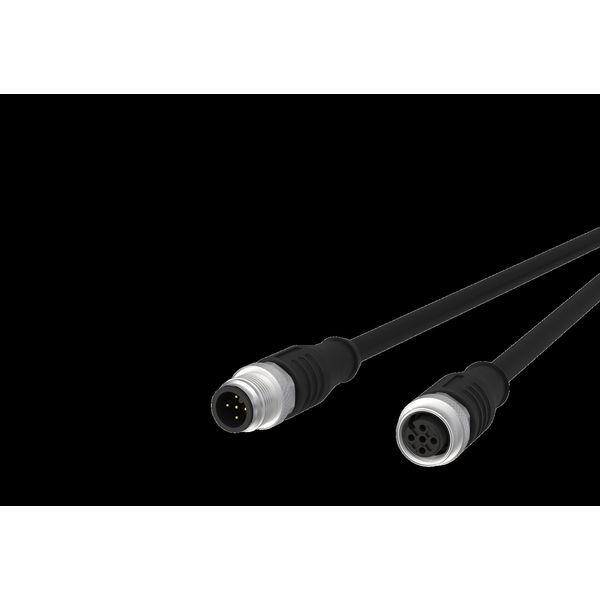

M12 Sensor/actuator cable, A-coded, 10.0 m, M12 plug straight - M12 ja
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
43,07 €
EAN: 4251394648125
MPN: 142MGA12100
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | M12 Sensor/actuator cable, A-coded, 10.0 m, M12 plug straight - M12 ja |
| Brand | METZ CONNECT |
| Categories |
Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8544 4210 00 |
| Halogen free | Yes |
| Cable type | Multi-core |
| Rated voltage | 60 V |
| Cable length | 10 m |
| Screened | Yes |
| Number of poles | 5 |
| Permitted cable outer temperature during assembling/handling | -120 °C |
| Permitted cable outer temperature after assembling without vibration | -130 °C |
| Continuity resistor | 5 mOhm |
| Material of contact surface | Gold |
| Vulcanize | No |
| Material of cable sheath | Polyurethane (PUR) |
| Degree of protection (IP) | IP65/IP67 |
| Type of electrical connection, box-sided | M12 |
| Type of electrical connection, field-sided | M12 |
| Positioning cable feed, box-sided | Straight |
| Positioning cable feed, field-sided | Straight |
| With LED indication | No |
| Type of plug-in contact, field sided | Male (plug) |
| Material contact body | CuSn |
| Colour cable sheath | Black |
| Type of plug-in contact, box-sided | Female (bus) |
Packing details
| Packing level 1 | 4251394648125, 4251394648125 |
Description
Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag-chain application is possible at a bending radius of minimum 10xd. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine tools and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain resistant, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant, Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.Other cable lengths on request.
