Wall and ceiling luminaire Mondia Diffuser White around ET 12,50W 1300lm Lambertian (L) IP40 IK03 3 SDCM 7968140

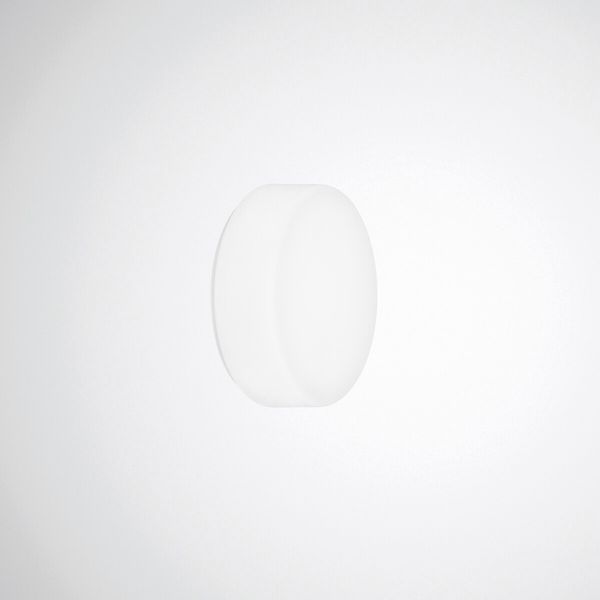

Round, surface-mounted LED luminaire with opal, cylindrically shaped PMMA diffuser, luminaire diameter 310 mm. The easy-to-install decorative ring is available as an optional accessory in the standard colours and can also be made in custom colours upon request. Developed and made in Germany. With integrated HF motion sensor. For wall or ceiling mounting. With Lambertian light distribution. With slight indirect component for surface illumination. Luminaire luminous flux and light color fixed. Luminaire luminous flux 1300 lm, connected load 12,5 W, maximum luminous efficiency of luminaire 104 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h, mean rated service life L70(tq 25 °C) = 75,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Diameter of diffuser Ø 310 mm, luminaire height 103 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP40, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,1 kg. The connection is made by means of a plug-in terminal with mains forwarding equipment. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
