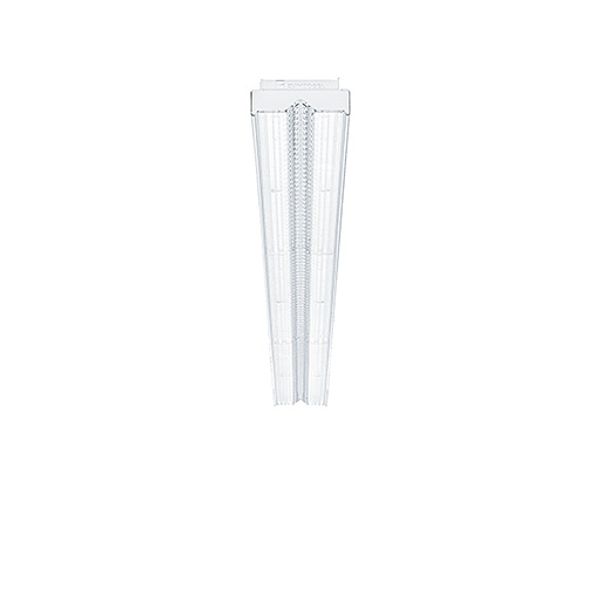

LED pendant luminaire

Energy-efficient TRINOS LED pendant luminaire with 64 highly efficient mid-power LEDs per segment. In combination with three corresponding TRINOS sealing components (sealing profile, sealing cover and sealing end caps): IP65 protection rating for the complete continuous row system. Luminaire input power: 36.1 W, DALI controllable luminaire with LED converter, makes environmental and financial sense. LED service life lasts 100000 h before luminous flux is reduced to 95% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire efficacy: 153 lm/W. Luminaire luminous flux: 5540 lm (sealing cover also taken into account). Luminaire with symmetric very wide distribution (very wide beam). Colour rendering Ra > 80, colour temperature 4000 K. Split lens concept for reducing perceived glare. Dimming level for DC mode preset to 15 %. LED continuous row luminaire made of sheet steel, enamelled in polyester lacquer finish, white. Tool-free mechanical and electrical installation in the TRINOS mounting rail. Phase selected at plug. No ultraviolet or infrared radiation. ambient temperature: -20°C to +40°C Luminaire wired with halogen-free leads. IK impact resistance factor for the complete continuous row: IK07. Note: please contact your consultant if you are planning to use in ambient atmospheres with chemical load, high or condensing air humidity, large temperature fluctuations or projects with the necessary absence of silicone. Certified by the Fraunhofer Institute: Suitable for GMP purity classes E and F (CNC areas). Permissible for use in environments where the deposition of conductive dust on the luminaire can be expected (EN 60598-2-24). Dimensions: 1499 x 63 x 51 mm. Weight: 2.1 kg.
