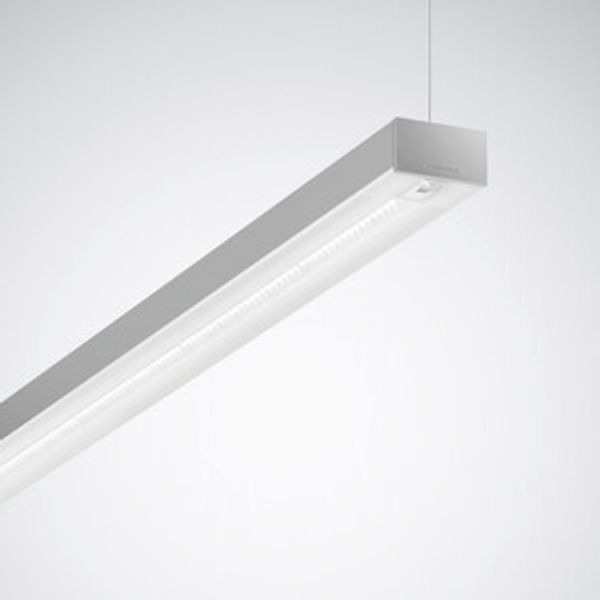

Suspended luminaires Solvan Flow H HCL Raster Silver ETDD8 48W 5500lm Wide (W) IK03 3 SDCM

Suspended LED luminaire for single use or continuous line applications. With integrated LiveLink WiFi control unit and LiveLink sensor for daylight-dependent control and presence detection as well as WLAN module for reliable commissioning and operation (WPA2 encryption). Predefined room configurations (Use Cases) with all planning-relevant data enable simple, quick commissioning. Control of up to 64 DALI devices. Commissioning is carried out with the LiveLink Install commissioning app for tablet PCs. LiveLink sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI devices. Square detection zone, detection squares for presence max. 4 m x 4 m (16 m2) / radial max. 4 m x 4 m (16 m2) / tangential max. 6 m x 6 m (36 m2) at recommended mounting height of 2,8 m, permissible mounting height 2.5 m to 4 m. For suspended mounting. As single luminaire or for continuous line use. Optical system with micro reflector technology (MRW) with highly efficient reflector chambers of white polished plastic for high light comfort and efficiency. With additional clear cover integrated in the optical system, flush fits on the room side and protects the LEDs. Discreet lateral light emission over the complete luminaire length. With symmetric wide light intensity distribution. With HCL equipment for controlling the light color by means of a separate control unit (DT8). Luminaire luminous flux 5500 lm, connected load 51 W, maximum luminous efficiency of luminaire 115 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated silver-grey (RAL 9006). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 45 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 5,2 kg. With electronic control gear unit for switching, dimming and controlling the light colour using DALI Device Type 8-enabled control unit. Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
