SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile image 1
SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile image 2
SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile image 3
SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile thumbnail 1
SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile thumbnail 2
SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile thumbnail 3
Zumtobel

H-lamination profile

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1
Cena (bez PVN):
Cena pēc pieprasījuma
Šī cena ir spēkā, kamēr prece ir krājumā
EAN: 4053167363613
MPN: 60211017
Iepakojums: 1
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): Pēc pieprasījuma

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums SUI 3PH/L3+DALI TRACK PROF-H 2X2M WH - H-lamination profile
Zīmols Zumtobel
Kategorijas Gaismekļu piederumi
Gaismekļi
Izcelsmes valsts DE
Harmonizētās sistēmas kods 7604 2990 00
Platums 5 mm
Augstums 114 mm
Piederuma/rezerves daļas veids Vāks
Garums 2000 mm

Iepakojuma informācija

Iepakojuma līmenis 1 4053167363613, 4053167363613

Citi tehniskie dati

Krāsa Balts
Materiāls Alumīnija

Lejupielādes

RoHS deklarācija Pārdošanas brošūra

Apraksts

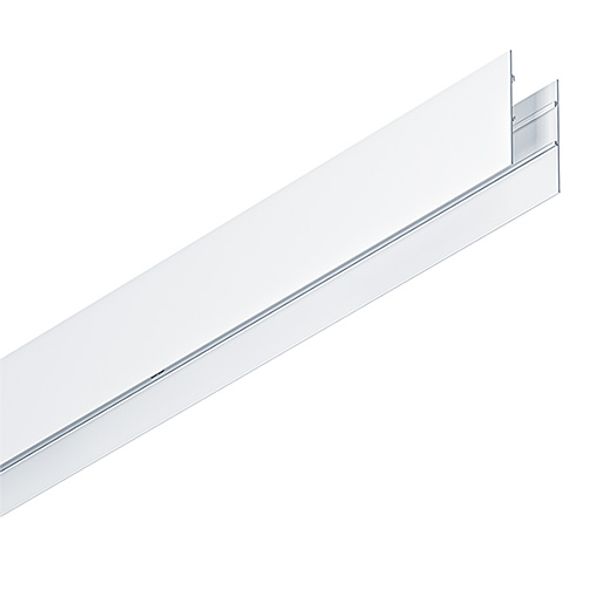

H-lamination profile (2 pieces), length: 2000mm; to cover the Zumtobel 3-phase/L3+DALI track and the SUPERSYSTEM integral track light inserts (direct/indirect distribution) as H channel profile; the upper side of the channel accommodates the indirect distribution light inserts; the light inserts are flush-clad in the channel profile and enable a non-interrupted appearance; material: aluminium extrusion, white powder coated; designed to be cut to required length by customer; simple tool-free mounting with mounting clips to be ordered separately (maximally every 500mm); tool-free pendant mounting of the SUPERSYSTEM INTEGRAL track channel profile is possible; dimensions: 2000x5x114 mm; weight: 2.33 kg; Note: clips (black or white) and steel cords for pendant suspension of the H channel profile must be ordered separately. Note: for track systems with angle connectors, covering profiles with 45° mitre-cut angles must be ordered separately or made on location; end caps for closing the ends of the H channel profiles and blank inserts for closing the module openings are possible and must be ordered separately.
