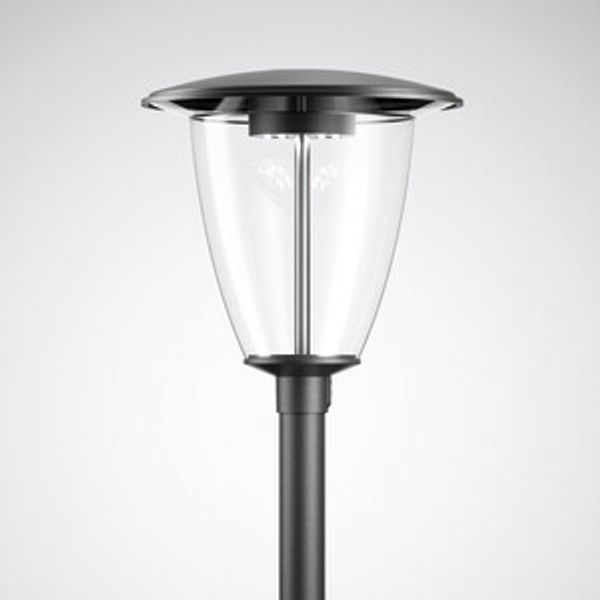

Post-top luminaires Lumantix Pilz (LTX P) CLO (normal) Lens Anthracite ETDD 11,50W 1200lm 70 asymmetric wide (AB2L) IP65 IK07 5 SDCM 7084451

Decorative post-top luminaire with classic ('mushroom') form. With an intelligent label for quick access to luminaire information by means of QR code. With self-regulating power reduction via integral evaluation electronics.Reduction of luminaire luminous flux to 50 % for a time period of 7 hours (-2 h/+5 h). The central point of the switch-on duration is defined new on a daily basis . Passender Mast auf Anfrage. As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With asymmetric wide light distribution. For lighting roads according to P lighting classes. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 1200 lm, connected load 11 W, maximum luminous efficiency of luminaire 109 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of cast aluminium. Luminaire canopies of corrosion-resistant aluminium. Surface anthracite coated (DB 703). Sea weather-suitable coating on request. Diffusers of highly impact-resistant clear PMMA. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK07. Mast available upon request. Windage area fw 0,190 m2. Weight: 7,5 kg. With assembled connection cable 6 m. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
