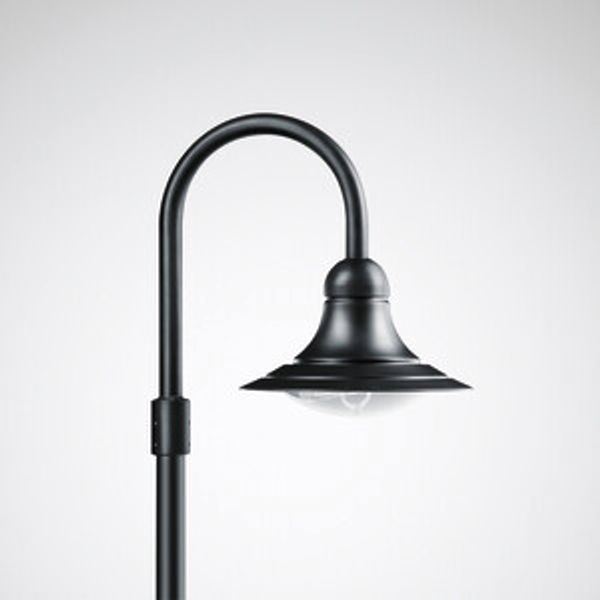

Post-top luminaires 9301/02 CLO (normal) Lens Black ET 20W 2600lm 70 asymmetric wide (AB2L) IP23 IK10 5 SDCM 6907040

Decorative compact LED post-top luminaire, curved form. With an intelligent label for quick access to luminaire information by means of QR code. With power reduction via control circuit. Switching off a control circuit causes the luminaire luminous flux to be set to 50%. Bracket or wall mounting. Passender Mast auf Anfrage. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide light distribution. For lighting roads according to P lighting classes. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). LED system consisting of 4 LED modules. Luminaire luminous flux 2600 lm, connected load 19 W, maximum luminous efficiency of luminaire 137 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K. general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Versions with 3-level switch for adjusting various luminous flux options on request. Luminaire canopies of corrosion-resistant aluminium. Surface coated black (RAL 9005). Sea weather-suitable coating on request. Diffuser of highly impact-resistant, clear PMMA. Securely fixed with one stainless steel screw. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP65. impact resistance level in accordance with IEC 62262: IK10. Protection rating of lamp compartment: IP65. Mast available upon request. Windage area fw 0,090 m2. Weight: 4,8 kg. Gear tray with plug connection, can be easily removed. Electrical connection via 3-pole socket part of plug connection, up to 2.5 mm2. With cable strain relief system. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
