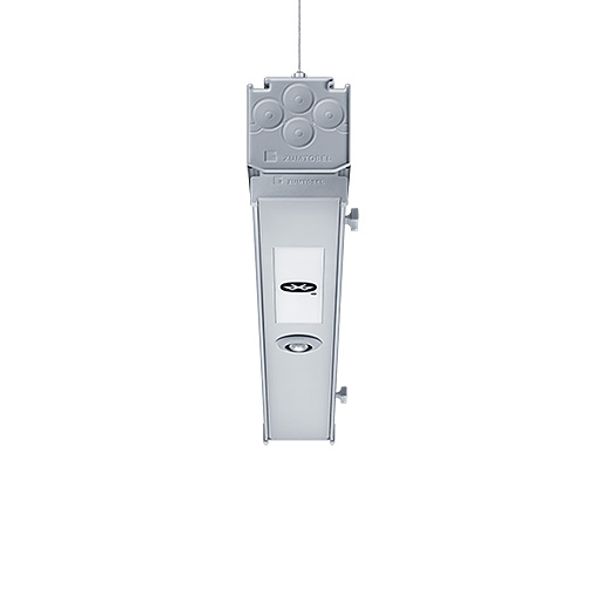

basicDIM Wireless/Sensor TECTON

TECTON module with integrated basicDIM Wireless (Bluetooth© CASAMBI) radio module and multi-sensor for motion detection and ambient light detection. (TRIDONIC MSensor G3 16dpi) TECTON module with IP54 protection rating. Tool-free mechanical and electrical installation on the mounting rail via two side levers. Optimised for industrial and logistics applications. Motion detection via PIR technology. Standard light measurement between 5 and 2000lx possible, min. value can be reduced to 0.5lx. Corrosion-protected trunking rail adapter made of roll-formed, hot-dip galvanised sheet steel with zinc-magnesium coating and polyester lacquer finish; housing colour silver. For sensor heights up to 8m. Detection radius for movement @ 8m mounting height 4.5m. Detection radius for light @ 8m mounting height approx. 4m. With included shield to reduce the PIR detection range by 120°, the shutter has no effect on the light measurement. Only one basicDIM Wireless (Bluetooth© CASAMBI) may be operated per DALI circuit/rail. The TECTON TT-D1/D2 enables the separation of the complete rail into individual sections on the DALI side and each individual section can be equipped with a basicDIM Wireless (Bluetooth© CASAMBI) module. Local control function: TECTON rail can be controlled by basicDIM Wireless (Bluetooth© CASAMBI) module with multi-sensor according to daylight and motion without additional central control unit. If several sensors are used, the lowest measured value of the light sensors is used, the movement messages are evaluated in total. As soon as no connected sensor reports movement, absence is detected. Permissible radio distance up to 15 m between individual basicDIM Wireless radio modules in other luminaires or TECTON inserts. One MSENS PIDA MC BC TEC-GP module can control a maximum of 15 luminaires via DALI broadcast. Additional MSENS sensors (without basicDIM Wireless modules) can be used on the TECTON rail. This reduces the number of controllable luminaires. (2 sensors - 11 luminaires / 3 sensors - 6 luminaires / 4 sensors (max) - 2 luminaires) Please refer to the installation instructions for further details. Sensor lens consists of polyethylene (PE), sensor housing consists of polycarbonate (PS). Temperature range from 0°C to +45°C. Protection rating: IP54. Dimensions: 498x60x16 mm; weight: 0.84 kg
