LiveLink 7104700 image 1
TRILUX

LiveLink 7104700

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1
Cena (bez PVN):
189,09 €
Šī cena ir spēkā līdz 24.12.25
EAN: 4018242400751
MPN: 7104700
Iepakojums: 1
Palete: 252
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 4-6 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums LiveLink 7104700
Zīmols TRILUX
Kategorijas Push Buttons
Izcelsmes valsts RO

Iepakojuma informācija

Iepakojuma līmenis 1 4018242400751, 4018242400751
Iepakojuma līmenis 2 4018242738762

Apraksts

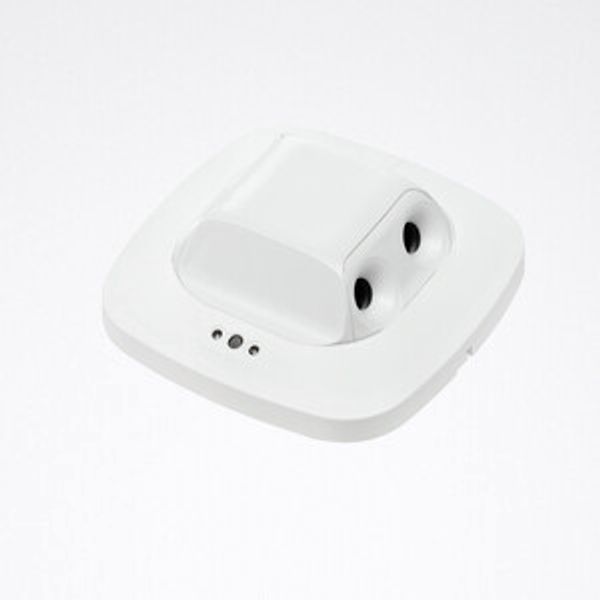

LiveLink corridor sensor Single US with ultrasound technology and DALI interface for connection to a LiveLink control unit, for daylight-dependent control and presence detection. With integrated light sensor for daylight-dependent control and two integrated ultrasound presence sensors. Constant light control with switch-off function with sufficient daylight. Presence detection independent of temperature, range up to 10 m in two directions each on one axis. Electrical supply via the DALI interface of the control unit. Settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Stepless setting of range. Temperature range: -10 °C - + 40 °C. Protection rating IP20. Sensor suitable for recessed ceiling installation in combination with standard cavity wall sockets, with special accessories also suitable for ceiling surface-installation.Electrical supply via the DALI interface of the control unit. Number of occupied DALI devices: 10. No other mains connection required. Commissioning together with the LiveLink control unit via the LiveLink app using a graphical user interface. Adjustable parameters: nominal value for constant light control, switch-off delay time, semi-/fully automatic, IQ mode activation, range setting and range test. DALI 2 certified product.
