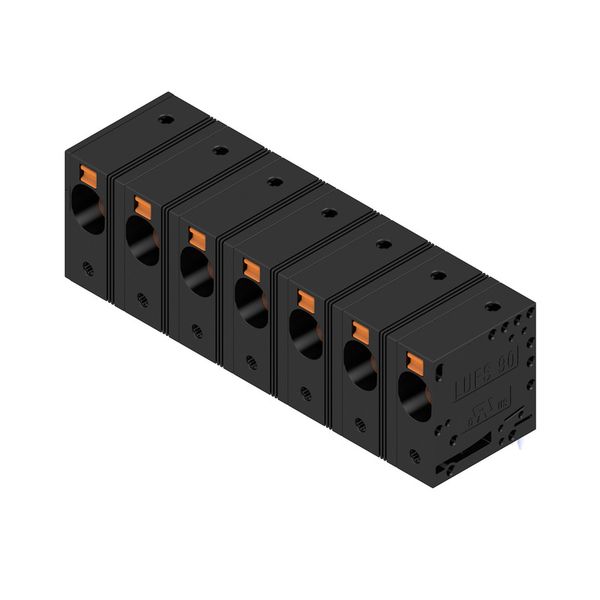

Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box image 1
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box image 2
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box image 3
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box image 4
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box thumbnail 1
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box thumbnail 2
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box thumbnail 3
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box thumbnail 4
Weidmüller

Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box

Order only Minimal order quantity: 10
Price (excl. VAT):
18,09 €
This price is valid until 24.12.25
Subtotal: 180,90 € MOQ: 10
EAN: 4050118604474
MPN: 2500600000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 5 mm, black, PUSH IN without actuator, Clamping range, max. : 16 mm², Box
Brand Weidmüller
Categories PCB Connectors & Terminals
Country of origin CN
Harmonized System Code 8536 9010 00
Rated voltage 1000 V
Number of levels 1
Rated surge voltage 8 kV
Degree of protection (IP), mounted Other
Angle PCB/conductor connection 0°/180° (horizontal)
Rated current In 76 A
Number of electrical connections 7

Packing details

Packing level 1 4050118604474

Other Technical data

Height 35 mm
Colour housing Black
Operating temperature -40-120 °C
Type of fastening Solder
Inflammability class of insulation material according to with UL94 V0
Over voltage category II
Pollution degree 2
Connection type conductor Push-in clamp connection
Connection type PCB Soldering connection
Length pin 5 mm
Modular spacing connections 15 mm
Type of banding Other
Connectable conductor cross section solid-core 0.5-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-25 mm²
Connectable conductor cross section multi-wired 10-25 mm²
Material insulation body Polyamide (PA)
Type of PCB fastening Other

Description

PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
