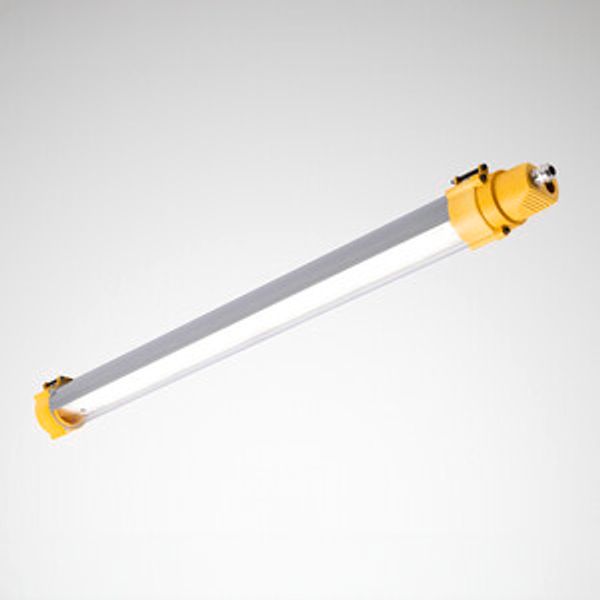

Weather-proof luminaires STRONGEX2 Diffuser ET 16W 2500lm Emergency light Very Wide (VW) IP66 IK10 3 SDCM

Robust and resistant tube luminaire for explosive indoor and outdoor areas. Version for application areas with a very high ambient temperature. In emergency light version with single battery system, nominal operation time 3 hours. Suitable for use in areas that are seldom and only briefly at risk of explosion due to combustible dust clouds during normal operation (Zone 22). Suitable for use in areas which are rarely and only briefly at risk of explosion due to gases, vapors or mists during normal operation (Zone 2). ATEX mark II 3G Ex ec IIC T4 Gc / II 3D Ex tc IIIC T85°C Dc / -20°C ≤ Ta ≤ +55°C. Cylindrical profile with photometrically effective prismatic structure as secondary optic. With symmetric extra wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 2500 lm, connected load 16 W, maximum luminous efficiency of luminaire 156 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 35 °C) = 100,000 h. The impact-resistant PMMA diffuser tube with end caps made of glass-fibre reinforced PA66 is resistant to acids, sulphur vapours and salty environments. End cap colour: Surface coated in signal yellow (RAL 1003). Sealings made from high-temperature resistant MVQ silicone. Inner gear tray made of sheet steel, powder-coated white. Dimensions (L x W): 888 mm x 125 mm, luminaire height 138 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66. Permissible ambient temperature -20°C ≤ Ta ≤ +55°C. Weight: 4,2 kg. With electronic control gear unit, switchable The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
