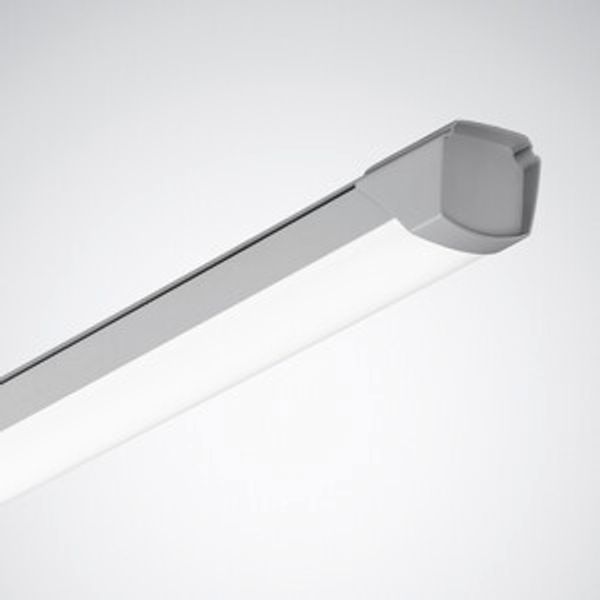

Weather-proof luminaires Deveo Fit Diffuser Grey other ETDD 32W 4000lm Lambertian (L) IP69K IK03 3 SDCM 7542251

Gas-proof surface-mounted luminaire for damp rooms as well as canopied and non-canopied outdoor areas. With 5 x 1.5 mm2 through-wiring. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. PMMA version of the luminaire due to its higher UV resistance is suitable for use in non-canopied outdoor areas. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Wall mounting can be implemented horizontally or vertically. Theft-proof mounting possible via theft protection, to be ordered separately. Mounting clips and triangular brackets for suspended mounting contained within the scope of supply. Mounting clips are slidable. With Lambertian light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4000 lm, connected load 32 W, maximum luminous efficiency of luminaire 125 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The luminaire body made of a single-part PMMA extrusion profile is resistant to chemical environmental influences. Colour of luminaire body light grey (RAL 7035). Dimensions (L x W): 1494 mm x 76 mm, luminaire height 67 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP69K, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 2,5 kg. With through-wiring option, a 5-pole cable is provided at both luminaire ends (2 x 3000 mm). The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
