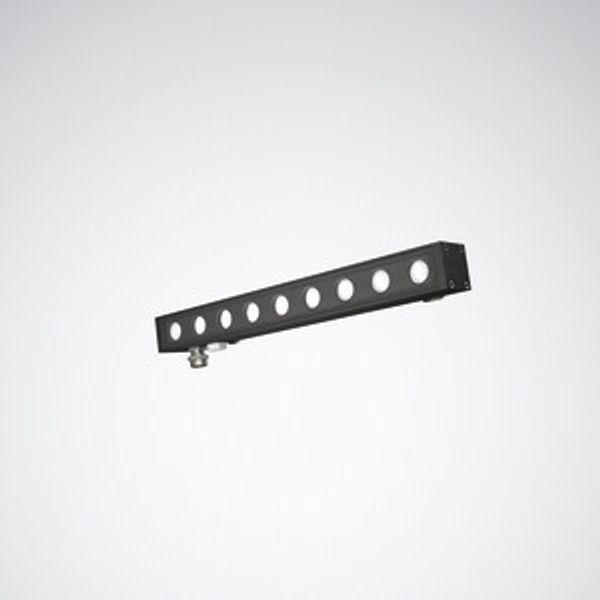

Wall and ceiling luminaire Altigo Lens Anthracite 9W 900lm rotationally sym. wide (RB) IP65 IK05 3 SDCM

LED surface-mounted luminaire for outdoor areas. Surface-mounted luminaire for outdoor wall, ceiling and floor mounting. As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With rotationally symmetric wide light distribution. With glass cover, clear. Luminaire luminous flux and light color fixed. Luminaire luminous flux 900 lm, connected load 9 W, maximum luminous efficiency of luminaire 100 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Further LED light colours available on request. Mean rated service life L80(tq 25 °C) = 50,000 h. Optionally also available with neutral white light colour / 4000 K colour temperature. Luminaire body of extruded aluminium profile and die-cast aluminium components. With flush-fitting cover and integral LED unit. Surface anthracite coated (DB 703). Dimensions (L x W): 300 mm x 32 mm, luminaire height 55 mm. Safety class (EN 61140): III, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK05. Weight: 0,6 kg. The electrical connection to the separate control unit is made via the connecting cable leading to the outside (2000 mm). Luminaire without control unit. External ballast as accessory must be ordered separately. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: / . The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
