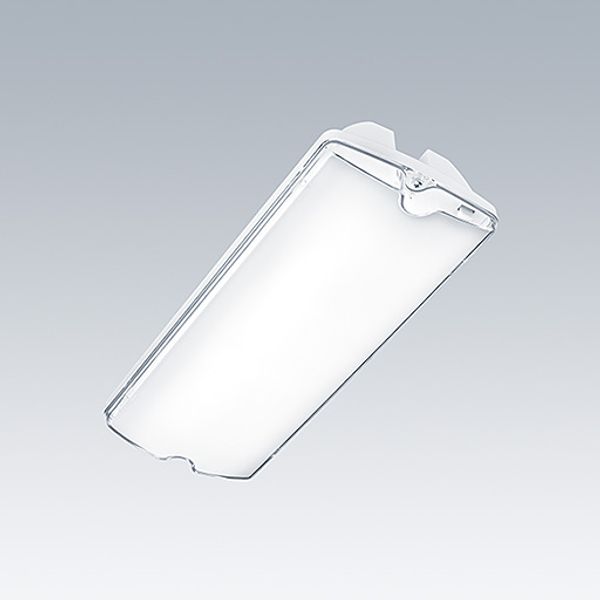

LED emergency luminaire
Tik užsakymas
Kaina (be PVM):
353,78 €
EAN: 9010299346841
MPN: 96634938
Pakuotė: 1
Numatomas pristatymo laikas į mūsų sandėlį (apytiksliai):
4-6 weeks
Technical Information
| Prekės būklė | Nauja |
| Gamintojo pavadinimas | VOYAGER SOLID L P MS HP E3D WH - LED emergency luminaire |
| Prekės ženklas | Thorn |
| Kategorijos |
Avariniai šviestuvai
|
| Kilmės šalis* | TR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Suderintos sistemos kodas | 9405 6120 00 |
| Lempa | Nekeičiamas LED |
| Smūgio stiprumas | IK07 |
| Nominali įtampa nuo / iki | 230-240 V |
| Saugos laipsnis (IP) | IP65 |
| Spalvos temperatūra | 6400 K |
| Didžiausioji sistemos galia | 11.5 W |
| Nurodytasis šviesos srautas pagal EC 6272 | 800 lm |
Pakavimo informacija
| Pakavimo lygis 1 | 9010299346841, 9010299346841 |
Kiti techniniai duomenys
| Saugos klasė | I |
| Lempos laikiklis | Nėra |
| Korpuso spalva | Baltas |
| Įtampos tipas | Kintamoji srovė |
| Įrenginio tipas | Srovę valdantis LED įtaisas |
| Su nuotoliniu valdymu | No |
| Suprojektuotas plotas | 0 mm |
| Korpuso medžiaga | Plastikinis |
| Suprojektuotas ilgis | 0 mm |
| Gaubto medžiaga | Plastikas, skaidrus |
| Su lempa | Yes |
| Atsparumas liepsnai - „D“ | No |
| Tinka įvairioms lempoms | 1 |
| Su nuotolinio jungiklio jungtimi | No |
| Nuolatinio šviesos srauto valdymas | No |
| Piktograma | No |
| Gyvavimo trukmė L70/B50 prie 25 °C | 100000 h |
| Nurodytoji aplinkos temperatūra pagal IEC 62722-2-1 | 0-35 °C |
| Šviesos srauto palaikymas, kai vidutinis naudingo tarnavimo laikas yra 50 000 h, esant 25 °C aplinkos temperatūrai (tq) | 90 % |
| Keičiamas valdymo įtaisas | No |
| Įmontuotas aukštis/gylis | 0 mm |
| Galios faktorius | 0.85 |
Atsisiuntimai
Aprašymas
IP65 LED safety luminaire for surface ceiling mounting; semi-recessed mounting possible with optional mounting frame; luminaire with local battery supply for 3h emergency lighting; display of luminaire status via status LED; automatic test via luminaire, optional central luminaire monitoring via DALI line; settable emergency light level; non-maintained and maintained mode settable via jumper and NFC; addressing alternatively possible visually or via EZ-addressing; cable length from emergency power source to last luminaire: 300 m; housing made of polycarbonate white; cover made of transparent polycarbonate; tool-less 'click' mounting after fitting the housing base; quick fit terminal block, through wiring possible up to 2,5 mm²; zero maintenance thanks to LED technology; service life of 50,000 h; rated supply voltage: 220/240 V; luminaire input power: max. 12 W; degree of protection: IP65; class of protection: SC2; impact strength: IK07; dimensions: 360 x 71 x 150 mm; weight: 1.45 kg_x000D_
_x000D_
Self-contained emergency luminaires rely on long-lasting batteries. Thorn batteries are robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
